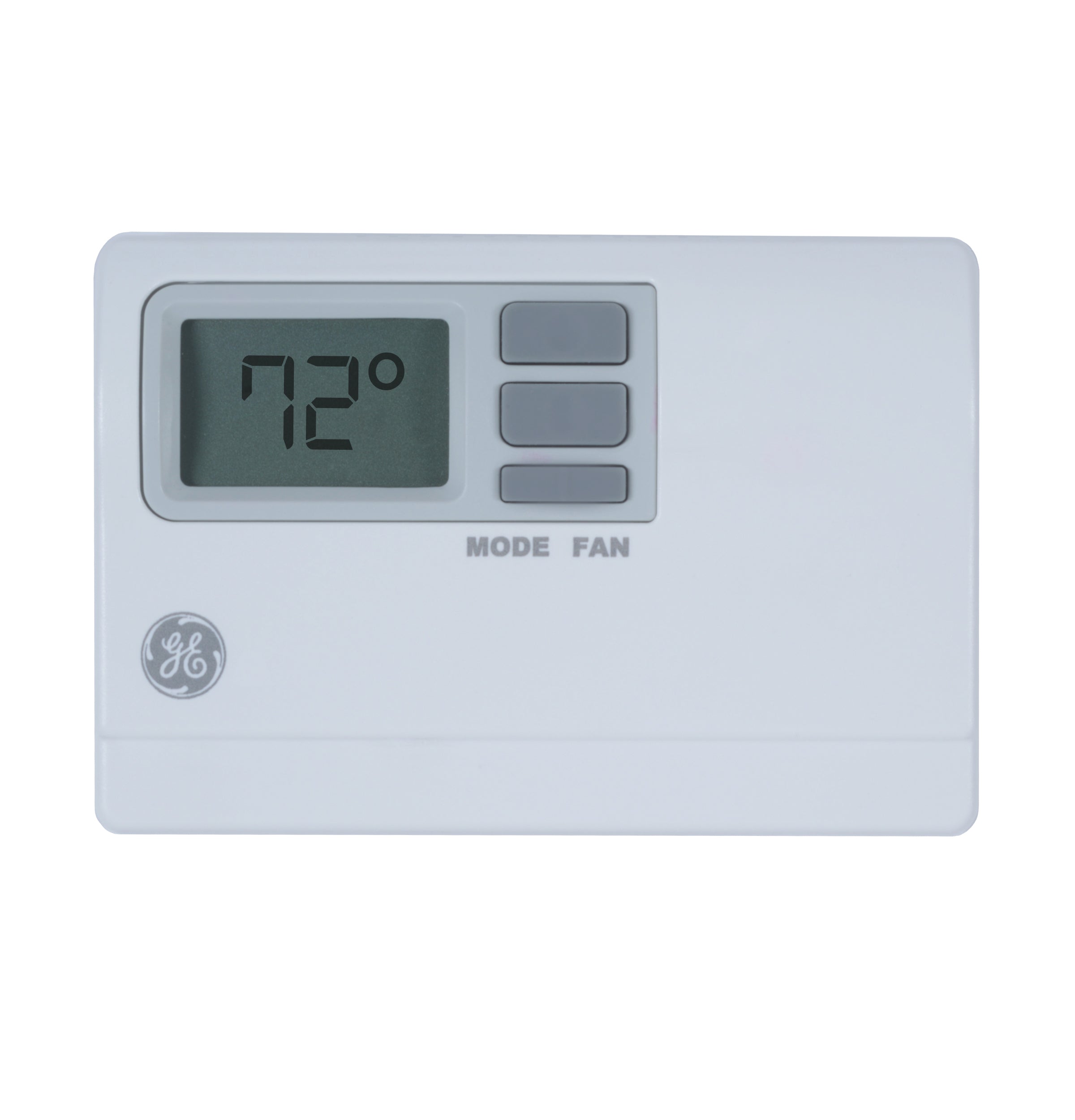

General Electric RAK150VF2 Non-Programmable Wall Thermostat

Product Description

The General Electric RAK150VF2 is a wired, non-programmable wall thermostat suitable for AZ9V GE VTAC units. It is designed for single-stage cooling and heating systems. This unit features simple up and down buttons for adjusting temperature, along with a backlit LED display for easy visibility.

• Wired installation required
• Compatible with AZ9V GE VTAC units
• Includes a backlit LED display

Product Highlights

This thermostat provides reliable temperature control in cooling and heating settings.

Product Information

Standard Information

• Brand: GE
• Type: Wired
• Programmable: No
• Color Appearance: White
• Net Weight: 1 lb

Technical Specifications

• Electrical Rating: 24 VAC (18-30 VAC), 1 amp maximum per terminal, 4 amp maximum total load
• Operating Temperature Range: 40°F to 99°F
• Temperature Set Range: 60°F to 85°F
• Accuracy: ± 1°F
• System Configurations: 3-stage heating, 2-stage cooling
• Wiring: Maximum length 66ft for AWG18
• Voltage Type: Low Voltage (24 Volts)
• Stages: 3 Heat / 2 Cool
