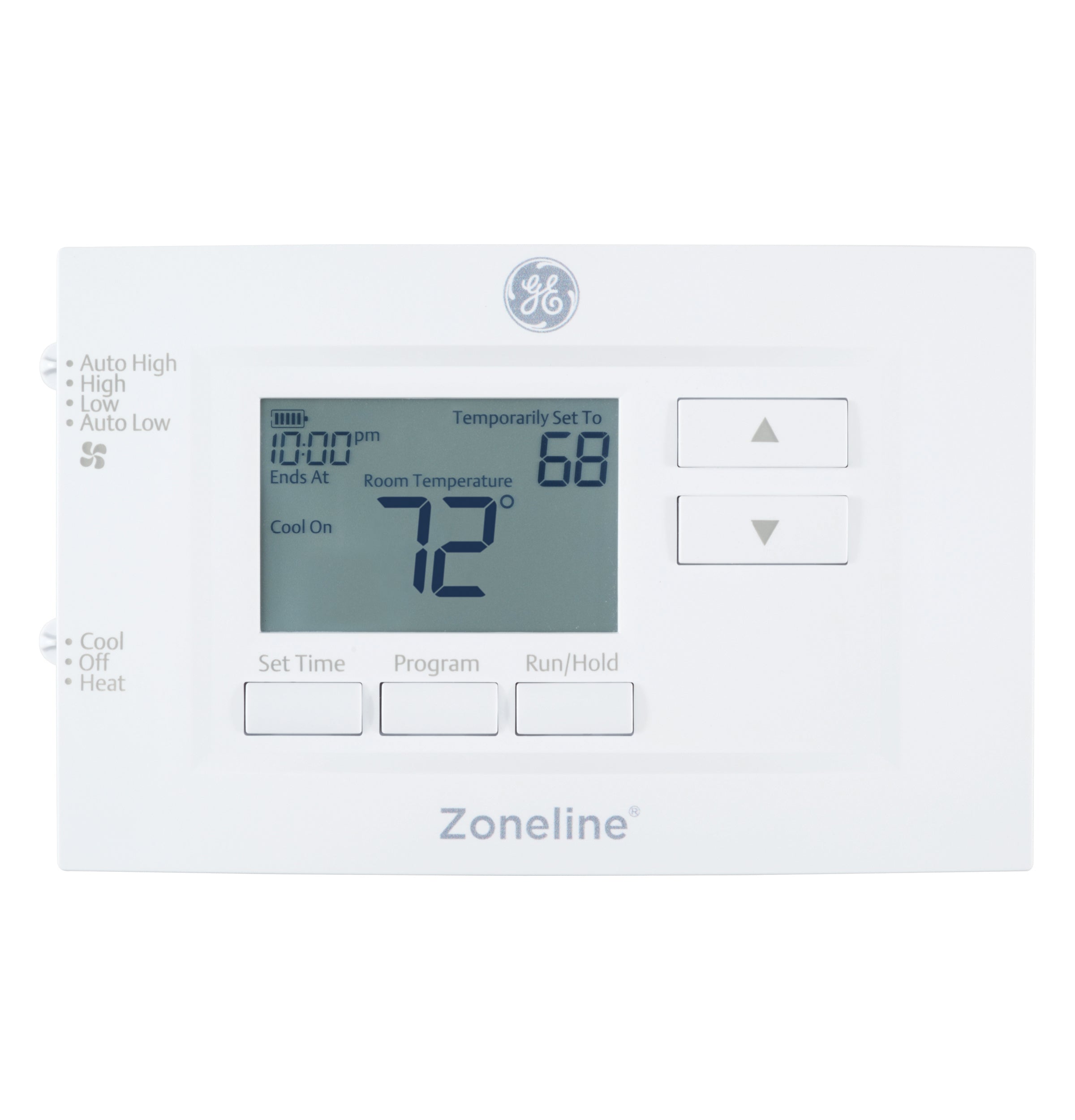

General Electric RAK149P2A Programmable Digital Thermostat

Product Description

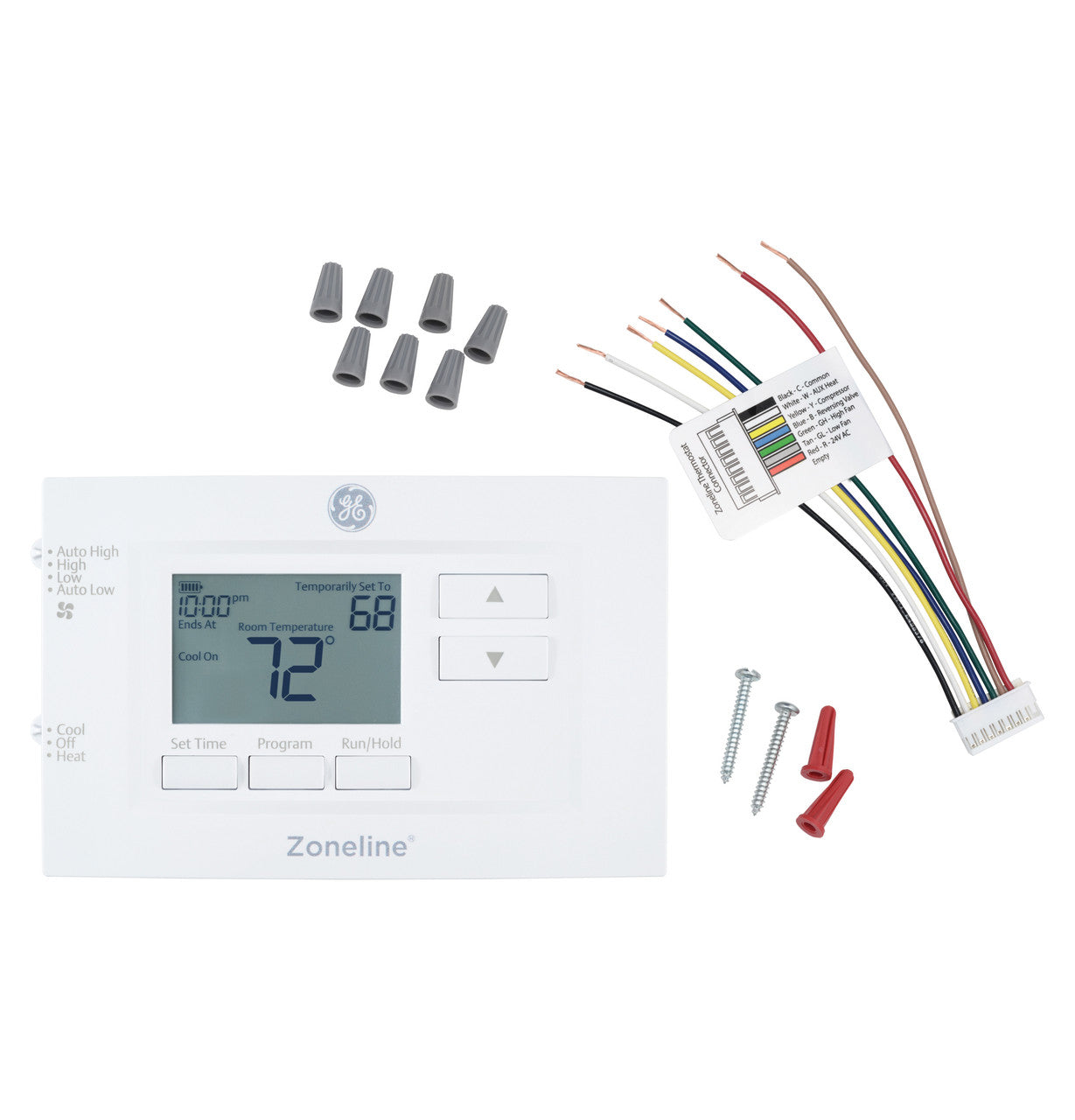

The General Electric RAK149P2A is a programmable digital thermostat suitable for wall mounting. This unit is compatible with PTAC and VTAC systems, accommodating single-stage cooling alongside dual-stage heating using a heat pump. The RAK149P2A features a backlit display and offers side switches for easy mode and fan control. Temperature adjustment and programming are made simple with designated buttons. The unit requires a six-wire setup.

• Programmable for both 7-day and 5+2 day schedules
• Supports both single and dual-stage heating and cooling
• Equipped with an LCD for clear temperature displays

Product Highlights

This thermostat is ideal for HVAC installations, providing versatility for different heating and cooling arrangements, and is designed to ensure optimal climate control in residential and commercial settings.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• MPN: RAK149P2A

Technical Specifications

• Control Type: Digital
• Voltage: 24 VAC (18-30 VAC)
• Stages of Heat: 2
• Stages of Cool: 1
• Programmable: Yes, 7-Day Programming
• Wiring Terminations: R, C, W, Y, G, B
• Operating Temperature Range: 40°F to 99°F (4°C to 37°C)
• Dimensions: 3.75 inches height x 6 inches width x 1 inch depth
• Approximate Shipping Weight: 1 lb
• Parts Warranty: 1-Year Replacement
