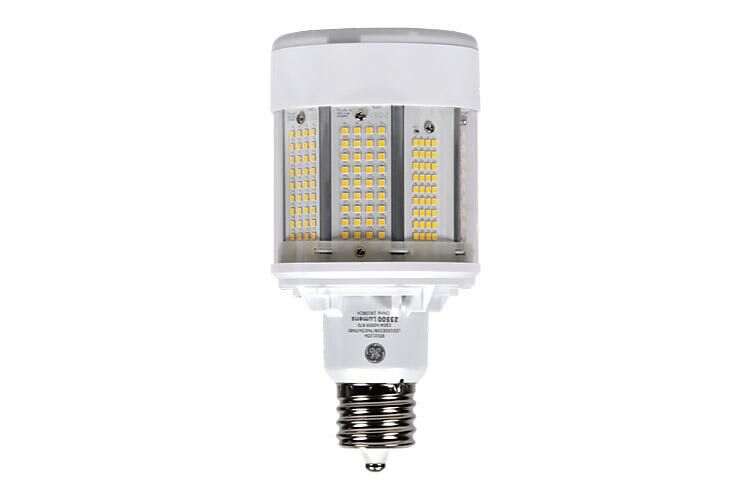

General Electric LED150ED28/750/277/480 Lamp 150W ED28

Product Description

The GENERAL ELECTRIC LED150ED28/750/277/480 is a 150W LED ED28 lamp designed as a direct wire replacement for HID lamps. This lamp operates between 277-480V and features an EX39 base. It is suitable for use in damp locations and has an operating life of 50,000 hours.

• Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
• Match ANSI standard shape
• One lamps for multiple applications

Product Highlights

This LED lamp offers energy savings and eliminates ballast compatibility issues. It is ideal for street lights, floodlights, and high-bay and low-bay lights in warehouses and convention centers.

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: LED150ED28/750/277/480

Technical Specifications

• MPN: LED150ED28/750/277/480
• Brand: General Electric
• UL Type: Type B
• Bulb Shape: ED28
• Bulb Base Type: EX39
• Voltage: 277-480
• Wattage: 150 W
• Wattage Replacement: 250, 400
• Operating Life: 50,000 hr
• Dimmable: Do not use with phase-cut dimmers. Dimming functions only with external Variac control devices.
• Operating Temp: -40 to 50 °C
• Efficacy: 157 LPW
• Lumens: 23,500 lm
• CCT: 5000 K
• CRI: 70 CRI
• Beam Angle: Omnidirectional
• MOL: 8.3 in
• Diameter: 4.1 in
• Safety Certifications: cULus
• Energy Certifications: Yes, To check or confirm DLC QPL status, visit www.designlights.org/search
• Location Ratings: Damp
• Standard Pack Quantity: 3
• Light Technology: LED
