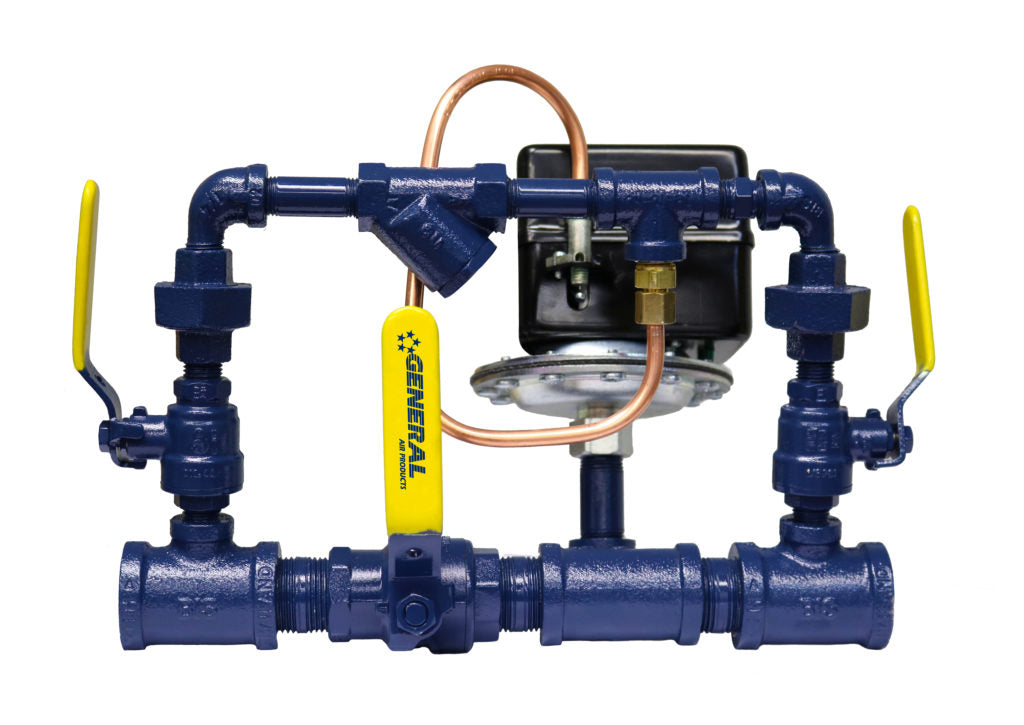

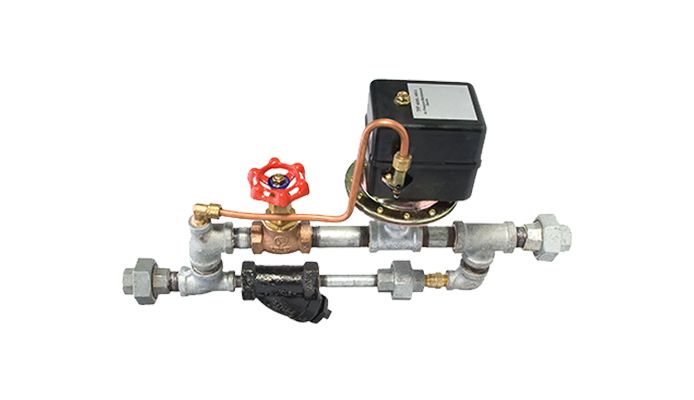

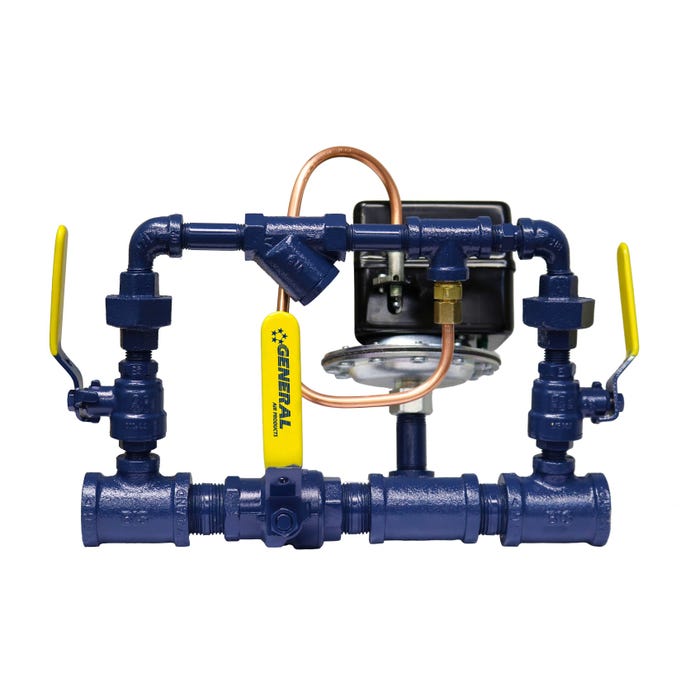

General Air Products AMD-2 Air Maintenance Device

Product Description

The GENERAL AIR PRODUCTS AMD-2 Air Maintenance Device is designed for automatic operation with fire protection air compressors lacking a pressure switch. This device automatically controls air pressure in dry pipe, preaction, and dry pilot actuated deluge systems. It maintains system pressure by cycling the air compressor on and off within preset limits.

• UL Listed for Fire Protection
• FM Approved
• Pressure gauge included with every unit
• Pressure set knob on regulator requires no tools to adjust
• Y-Strainer
• Restrictive Orifice Check Valve

Product Highlights

The AMD-2 automatically controls air pressure in fire protection systems, ensuring optimal performance.

Product Information

Standard Information

• Brand: GENERAL AIR PRODUCTS
• Manufacturer Part Number: AMD-2

Technical Specifications

• Manufacturer: General Air Products
• Brand: General Air Products
• Condition: New
• Unit of Measurement: EA (Each)
• Production Status: Active
• Field-adjustable pressures: minimum cut-in (ON): 14 psi (1,0 bar)
• Maximum cut-out (OFF): 60 psi (4,1 bar)
• Factory-set outlet pressure: 35 to 41 psi (2,4 to 2,8 bar)
• Pressure switch differential: 6 psi (0,4 bar)
• Item Number: AMD2
• Description: AIR MAINTENANCE DEVICE
• Vendor Part Number: AMD-2
