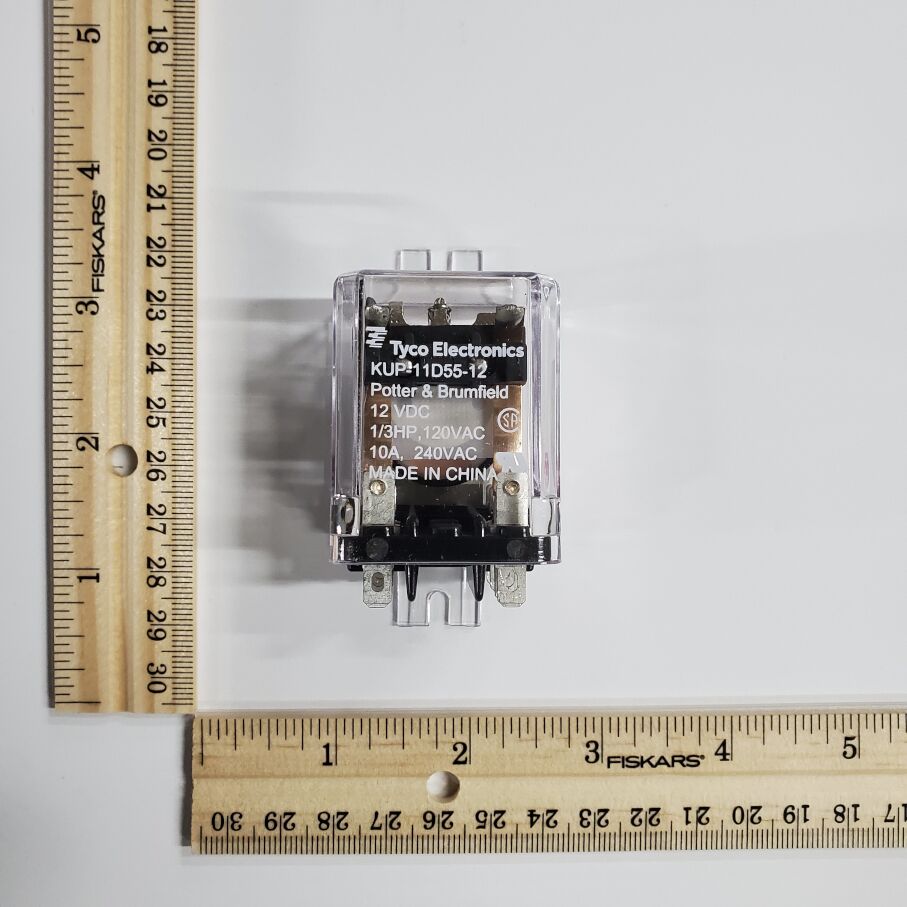

Generac g063617 Dpdt Relay 10A 240VA 12VDC

Product Description

The GENERAC g063617 is a double-pole double-throw (DPDT) relay rated for 10 amps at 240VA with a 12-volt DC coil. Relays of this type serve as electrically operated switches, using a low-voltage DC signal to open or close higher-voltage AC or DC circuits. The g063617 is designed as an OEM component for GENERAC generator and power management systems, where it controls load-switching functions within control panels and automatic transfer circuits. Installation is typically handled by a qualified electrician or generator service technician.

This relay is suited for use in generator control boards, automatic transfer switch assemblies, and related power management equipment where a 12-volt DC actuated DPDT switching function is required. Its 10-amp, 240VA rating supports a range of load-control applications common in standby generator wiring. Consult the equipment service manual to confirm fitment before ordering.

Key Features

• DPDT (double-pole double-throw) contact configuration for versatile load switching
• 10-amp contact rating at 240VA
• 12-volt DC coil for low-voltage control circuit actuation
• OEM GENERAC part for direct replacement in compatible generator systems

Compatibility

Designed as an OEM-style replacement relay for GENERAC generator and power management equipment. Confirm part number match against the unit service manual or existing relay label before installation.

Installation Notes

Installation should be performed by a licensed electrician or a certified generator service technician. De-energize the generator and disconnect all power sources, including the battery, before removing or installing the relay. Follow NFPA 70 (NEC) guidelines for control wiring in generator and transfer switch applications. Verify coil polarity and contact ratings match the application before energizing the system.

Technical Specifications

• Coil Voltage: 12 volts DC
• Contact Configuration: DPDT (Double-Pole Double-Throw)
• Contact Rating: 10 amps at 240VA

Standard Information

• Brand: GENERAC
• Manufacturer Part Number: g063617
