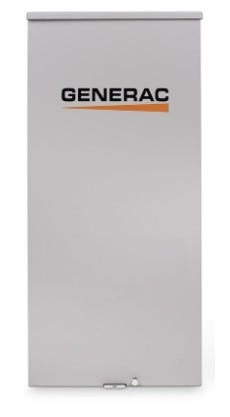

Generac 9953 200 Amp Non-Service Rated Automatic Transfer Switch REPLACES THE RXSC200A3

Product Description

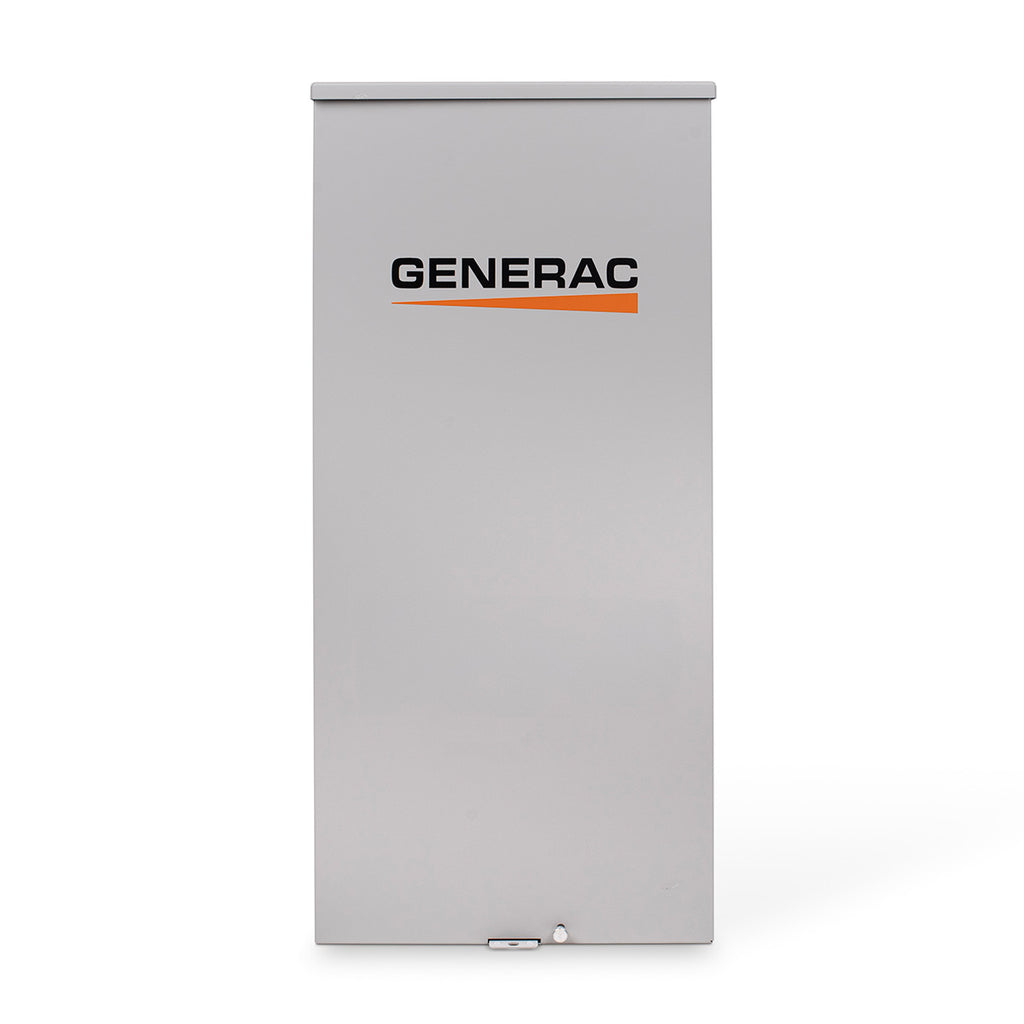

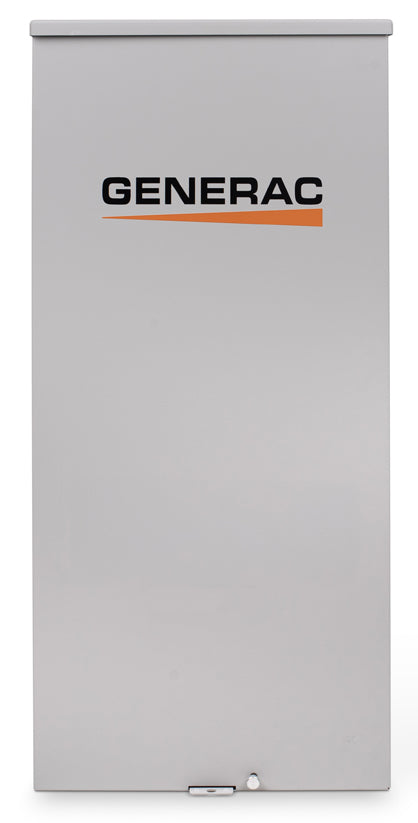

The GENERAC 9953 is a 200 Amp Non-Service Rated Automatic Transfer Switch, designed as a direct replacement for the RXSC200A3. Designed for use with single phase generators that utilize an Evolution™ or Power Zone™ 200 controller. The hardened transfer switch control combats harmful utility power disturbances. The NEMA 3R enclosure allows for indoor or outdoor installation.

• Direct replacement for model number RXSC200A3
• Hardened transfer switch control combats harmful utility power disturbances
• NEMA 3R enclosure protects from rain, snow, ice, and debris

Product Highlights

The Generac 9953 automatic transfer switch offers enhanced reliability and increased performance for residential generators. It features a durable design.

Product Information

Standard Information

• Brand: GENERAC
• Manufacturer Part Number: 9953
• Country of Origin: USA

Technical Specifications

• Product Depth (in.): 6.5
• Product Width (in.): 13.5
• Product Height (in.): 30
• Voltage: 120, 240V
• Electrical Phases: 1
• Max Generator Input: 200A
• Max Utility Input: 200A
• Enclosure Material: NEMA 3R
• Certifications: ETL
• EPA Compliant: Yes
• Approved for Commercial Use: Yes
• Amps: 200
• IP/NEMA Rating: NEMA 3R
