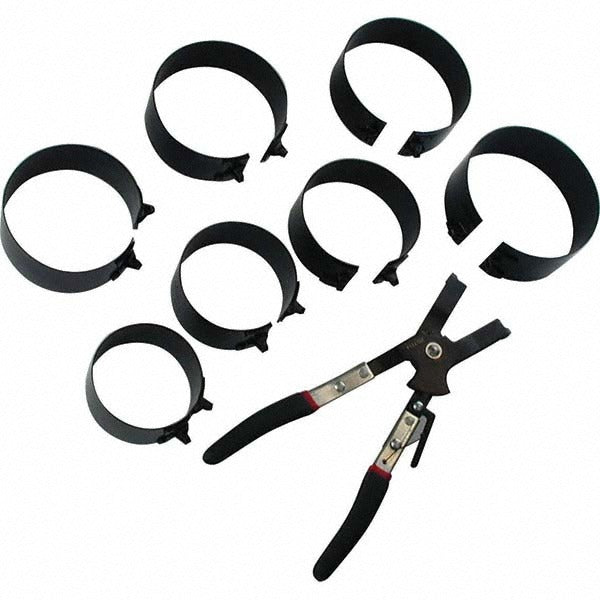

Gearwrench 850DD Piston Ring Compressor 2.88-4.38 in 9 Pc

Product Description

The GEARWRENCH 850DD is a piston ring compressor set designed to compress piston rings for smooth, damage-free piston installation into engine bores. The set covers a range from 2.88 inches (73mm) to 4.38 inches (117mm), making it suitable for a wide variety of gasoline and diesel engine sizes encountered in automotive and light truck service. The 9-piece set includes seven interchangeable bands, a blow-mold storage case, and a pair of pliers for tightening the band around the piston. Engine builders, automotive technicians, and heavy equipment mechanics rely on this tool to seat pistons without distorting or breaking rings during assembly.

The 850DD is built for engine overhaul and rebuild applications where precise ring compression is required before piston insertion. The included band range covers common bore sizes found in passenger vehicles, light trucks, and small-displacement diesel engines. The blow-mold case keeps all seven bands and the pliers organized and protected between jobs, making this set practical for both shop bench use and mobile service work.

Key Features

• Covers bore sizes from 2.88 inches to 4.38 inches (73mm to 117mm)
• 9-piece set includes seven bands plus pliers and blow-mold storage case
• Interchangeable band design allows quick sizing for different bore diameters
• Blow-mold case keeps components organized and protects bands from damage
• Pliers included for secure, uniform band tightening around the piston

Compatibility

Designed for use with pistons ranging from 2.88 inches to 4.38 inches (73mm to 117mm) in diameter. Suitable for engine rebuild and overhaul work on automotive, light truck, and similar internal combustion engine applications within that bore range.

Installation Notes

Engine assembly and piston installation should be performed by an automotive or diesel technician familiar with internal engine service procedures. Always ensure the engine is fully disassembled and secured on a stand or bench before attempting piston installation. Select the correct band size for the bore diameter, seat the band squarely on the piston, and use the included pliers to tighten the band evenly before tapping the piston into the bore. Do not force a piston into the bore if resistance is felt — recheck band seating and ring gap alignment before proceeding.
