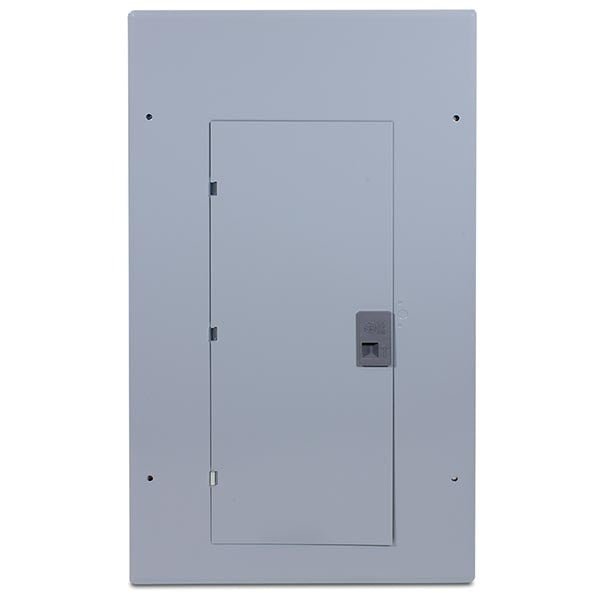

General Electric TLM2020CCU 200A Load Center (20 Circuits)

Product Description

The General Electric TLM2020CCU is a PowerMark Gold convertible main lug load center rated 200 A for 120/240 VAC service. It has a 22 kA interrupt rating and main lug models are field convertible to a main breaker compatible with THQL/THQP breakers. The unit supports indoor residential distribution and can be used as service entrance equipment when installed per the National Electrical Code, with wire capacity from 6 AWG to 250 kcmil and dimensions 26-7/16 in H x 14 in W x 3-3/4 in D.

• 200 A, 120/240 VAC load center with 22 kA interrupt rating and main lug convertible to main breaker (THQL/THQP compatible)
• 20-circuit/20-space, 1-phase interior with split neutrals, copper busbar, top/bottom feed and flush mounting
• Wire capacity 6 AWG to 250 kcmil; conductor temperature rating 60/75 °C; suitable for indoor residential distribution and service entrance per NEC

Product Highlights

Convertible PowerMark Gold load center, 200 A, 120/240 VAC, 22 kA interrupt, 20 circuits, THQL/THQP compatible

Product Information

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: TLM2020CCU
• Country of Origin: UU
