Product Description

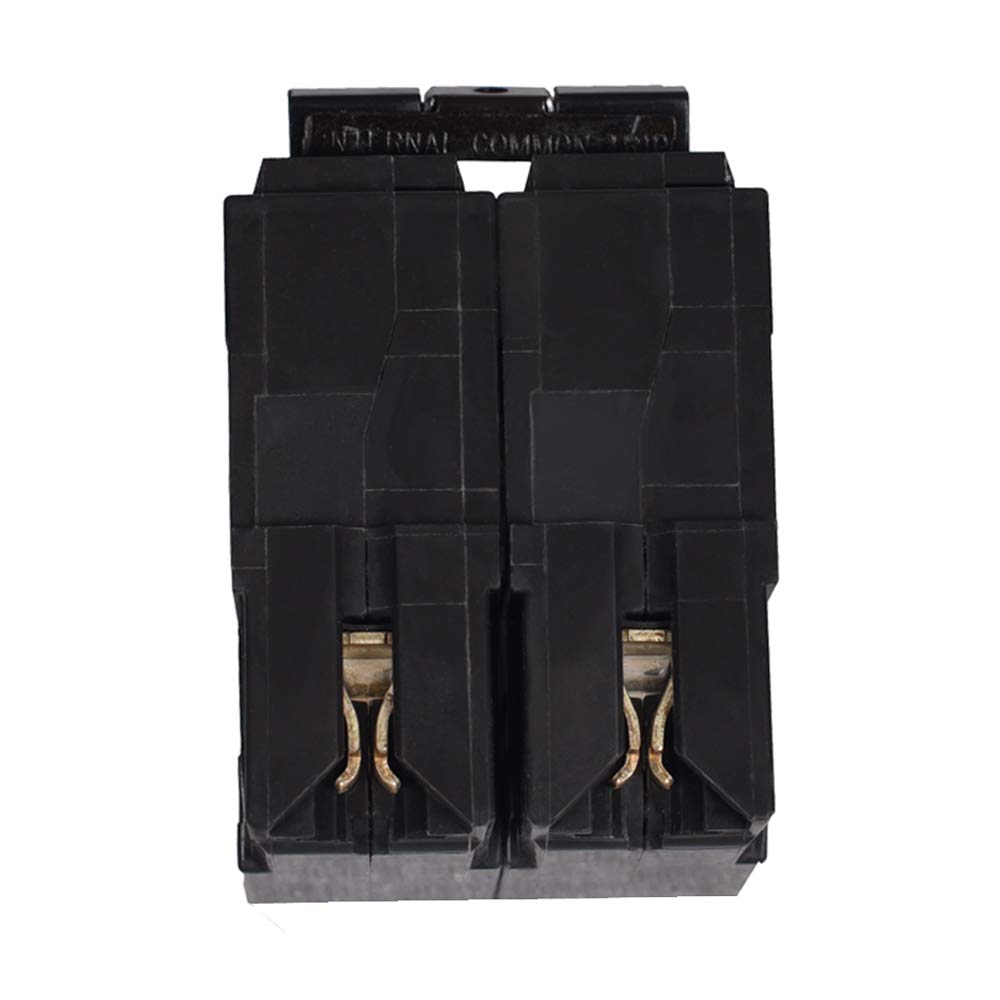

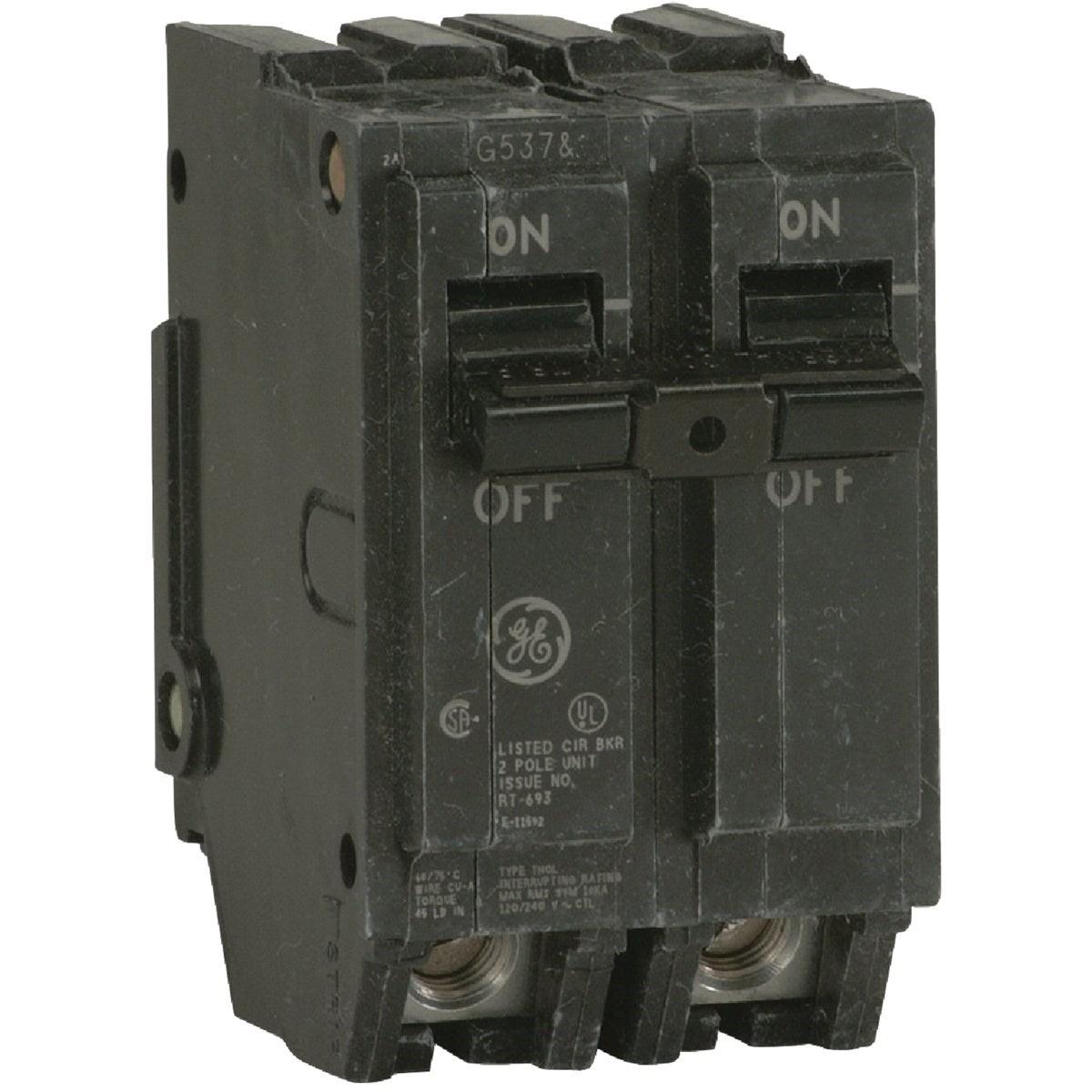

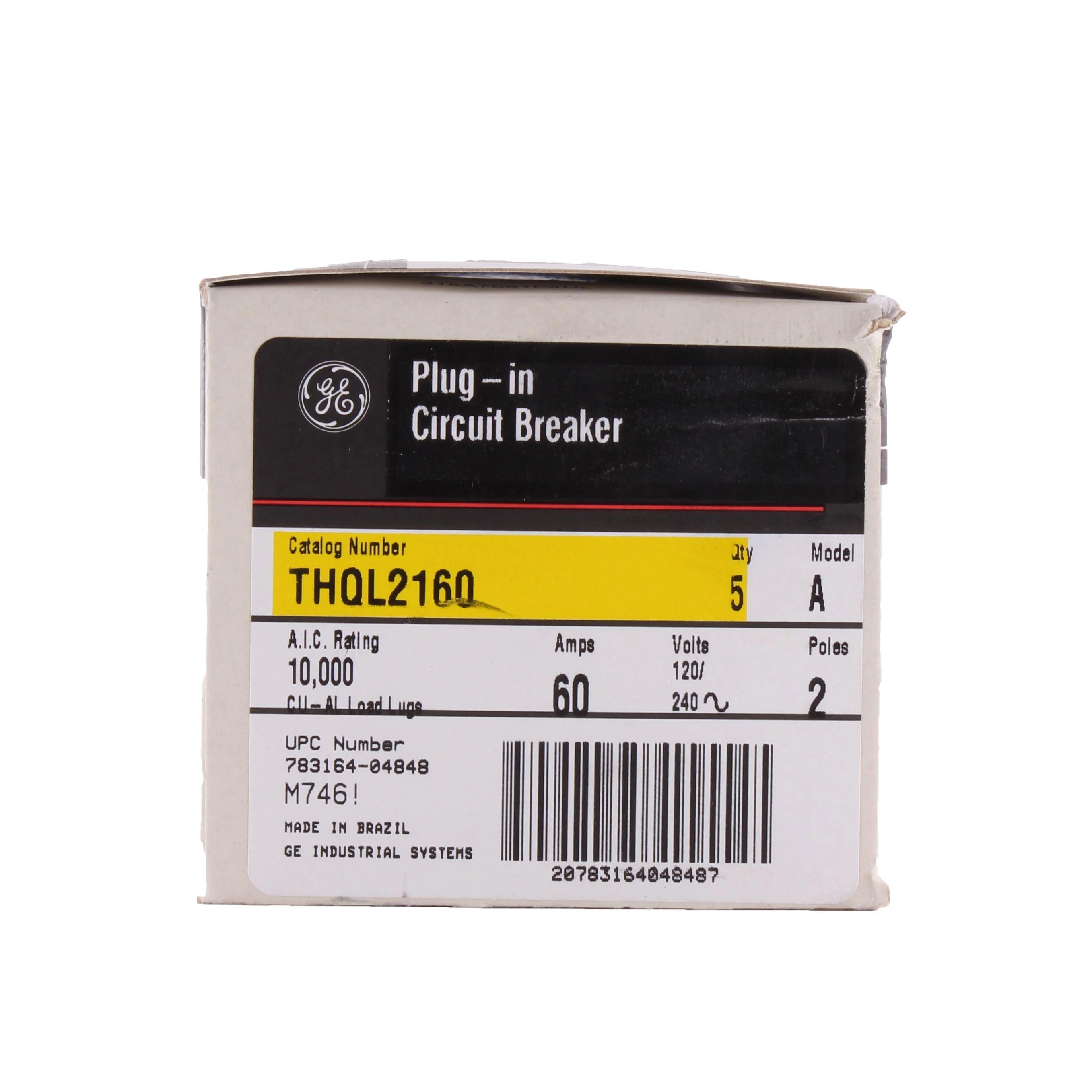

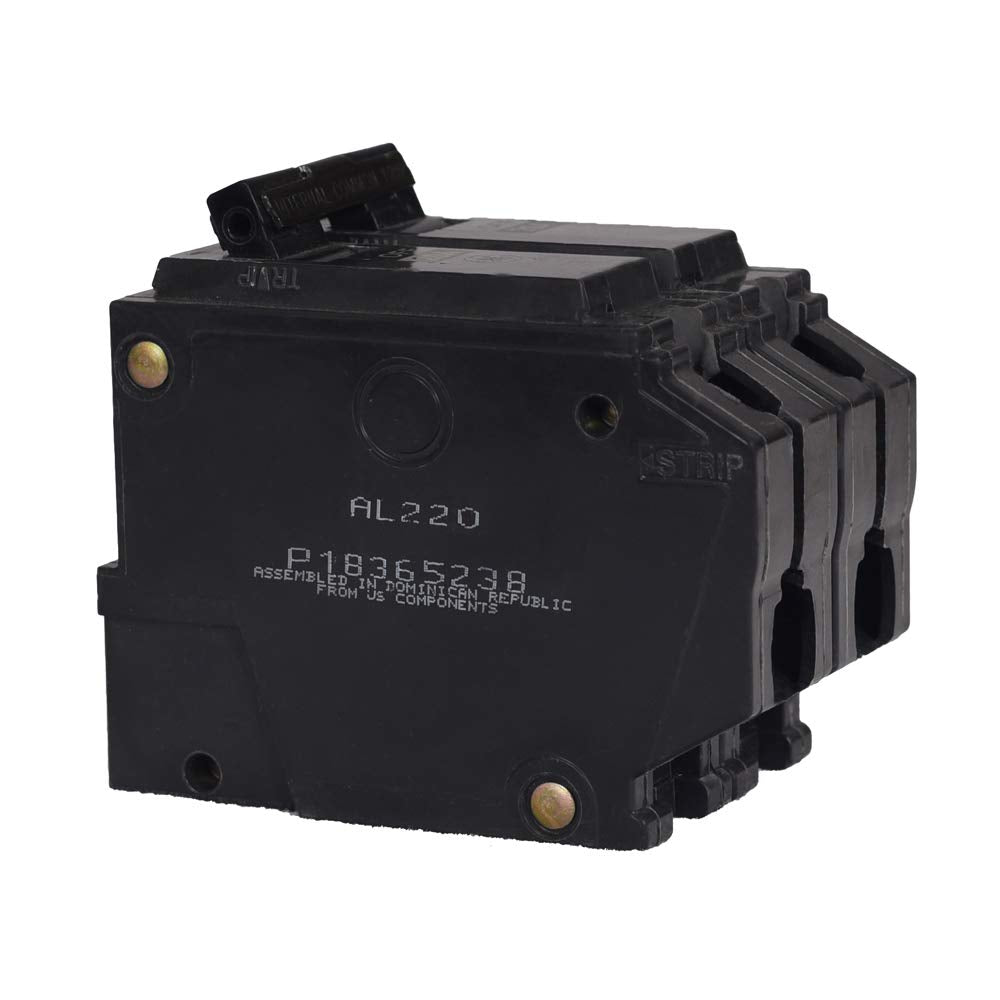

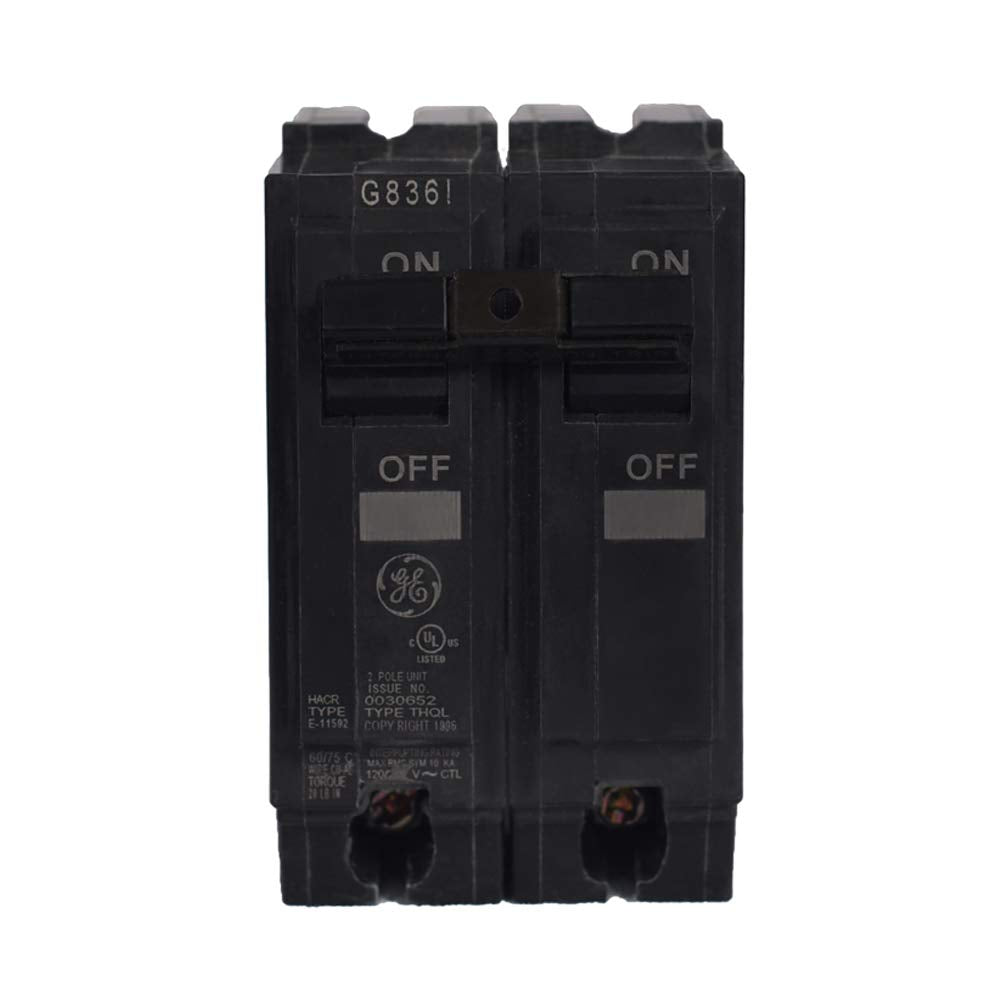

The GE THQL2160 is a double-pole standard trip circuit breaker. These Q Line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications in load centers or lighting panels. It features quick-make / quick-break mechanisms and common trip bars. Rated at 120/240V with an interrupt rating of 10kAIC.
- Compact, thermal-magnetic devices
- Designed for residential and commercial applications
- Features Quick-make / Quick-break mechanisms
Product Highlights
The GE THQL2160 is ideal for residential and commercial applications. It provides reliable protection against overloads and short circuits.
Product Information
Standard Information
-
Brand: GE
-
Manufacturer Part Number: THQL2160
-
Country of Origin: US
Technical Specifications
-
MPN: THQL2160
-
Brand: GE
-
Frame: Q-Line
-
Sub Brand: Q Line
-
Trip Type: LI
-
Application: Electrical Wiring
-
Load Rating: HACR
-
Product Name: Plug-In Circuit Breaker
-
Voltage Rating: 120/240V
-
Amperage Rating: 60 A
-
Number Of Poles: 2 Pole
-
Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac
-
Stripped Catalog Number: THQL2160
-
Trade Size: 1IN
-
Phase: 1
-
Temperature Rating: 60/75 deg C
-
Mounting Type: Plug-In
-
Wire Size: 8 to 3 AWG
-
Current Rating: 51-60 A
-
Operating Temperature: 40 °C (104 °F)
-
Electrical Connection: Box Lugs
-
Circuit Breaker Type: Standard
-
Poles: 2 Pole
-
Interrupting Rating: 10 Kiloampere
-
Terminal: Box Lug Load Terminal Terminal
-
Wire Size (Copper): 6 To 1/0 Awg
-
Wire Size (Aluminum): 4 To 1/0 Awg
-
Mounting: 1 Inch Plug In Mounting
-
Used On: Al Series Panelboard
-
Model: Thql Model
-
Voltage: 120/240 Vac
-
Functions: LI - Long-Time and Instantaneous Trip
-
Connection Type: Plug-In
-
Protection: Thermal Magnetic
-
Terminal Connection: Load Side Lug
-
Upc: 783164048483
-
Gtin: 783164048483
-
Power Capacity: 60-amp
-
Interruption rating: 10kAIC
-
Conductor rating: 65° C/75° C
-
Wire ranges: AWG #14-8 Copper and #12-8 Aluminum
-
System: Single Phase 120/240
-
Number of Throws: 2
-
Maximum Amperage: 60 A
-
Number of Positions: 2
-
Number of Phases: 1
-
Material: Plastic
-
Operation Method: On/Off
-
Type: Breaker
-
Break Time: Instantaneous
