Ge THQB1130 THQB 1p 30A 120V Bolt-on CB

Product Description

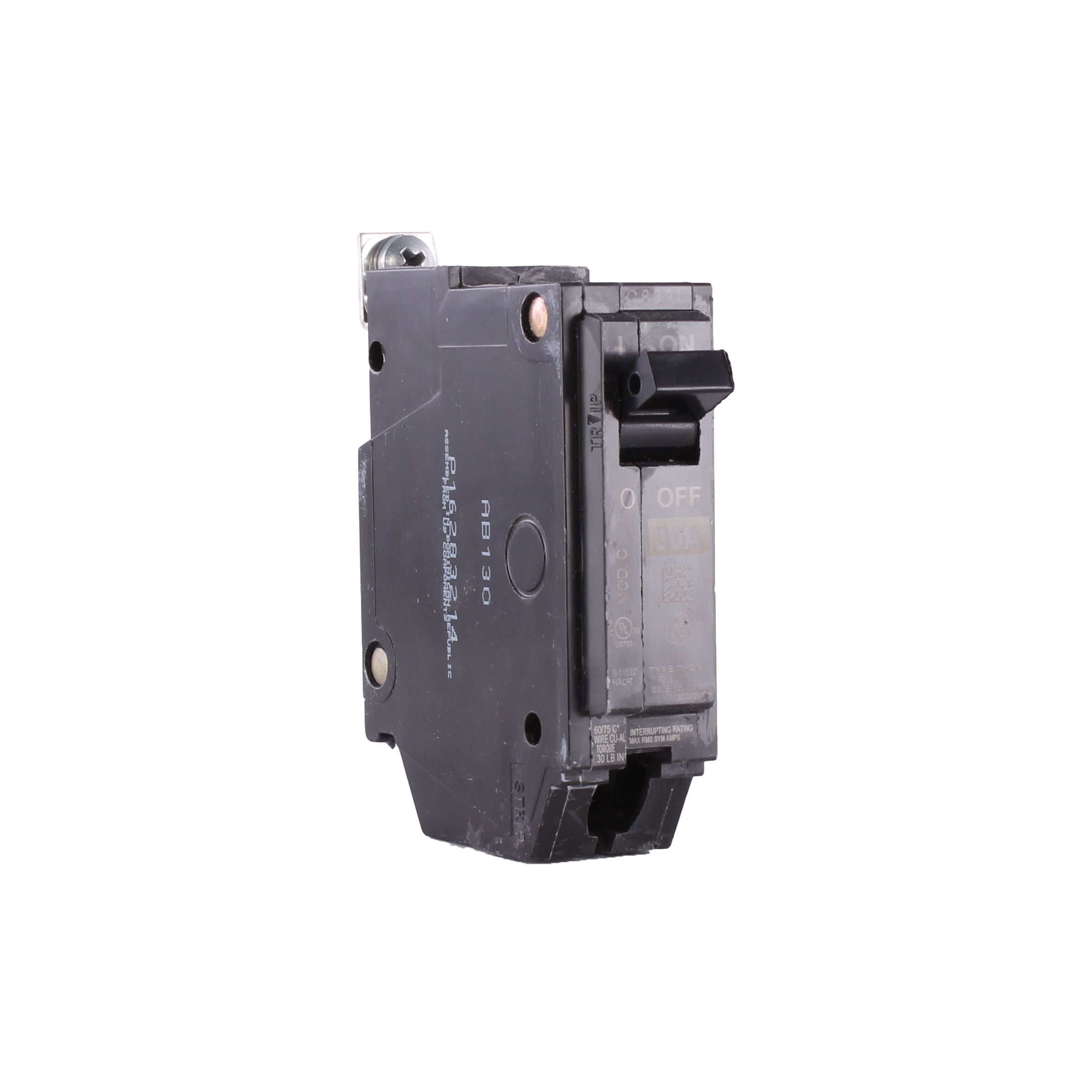

The GE THQB1130 is a 1-pole, 30A, 120/240V AC bolt-on circuit breaker designed for residential and commercial applications. This Q Line circuit breaker is a compact, thermal-magnetic device with a 10kA AIR rating. It features a Quick-make / Quick-break mechanism and easy-to-spot trip indication.

• Bolt-on mounting style for easy installation
• Thermal-magnetic operation
• Suitable for use with lighting panels and load centers

Product Highlights

The GE THQB1130 is a reliable circuit breaker with a bolt-on design, ideal for residential and commercial use.

Product Information

Standard Information

• Brand: GE
• Manufacturer Part Number: THQB1130
• Country of Origin: Multiple

Technical Specifications

• Brand: GE
• Manufacturer: General Electric
• MPN: THQB1130
• Amps: 30 A
• AC Voltage Rating: 120/240V AC
• Circuit Breaker Type: Standard
• Number of Poles: 1
• DC Voltage Rating: Not Rated
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: Bolt On
• Phase: Single
• Series: THQB
• Max. AIR Rating: 10kA at 120/240V AC
• For Use With: Lighting Panels, Load Centers
• Terminal Connection: Screw Clamp
• Frame Size: 100A/THQ
• Length: 3.53 in
• Width: 1 in
• Depth: 3.28 in
• Min Wire Size: 12 MCM (Al), 14 MCM (Cu)
• Max Wire Size: 8 MCM
• Standards: UL Listed
• Voltage Rating: 120/240 V
• Wire Size: 14 to 8 AWG
• Mounting Type: Bolt-On
• Trip Type: Non-Interchangeable
• Application: Thermal Magnetic
• Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac
• Product Name: Bolt-On Circuit Breaker
• Amperage Rating: 30 A
• Number Of Poles: 1 Pole
• Load Rating: HACR
• Trip Range: Non-Interchangeable
