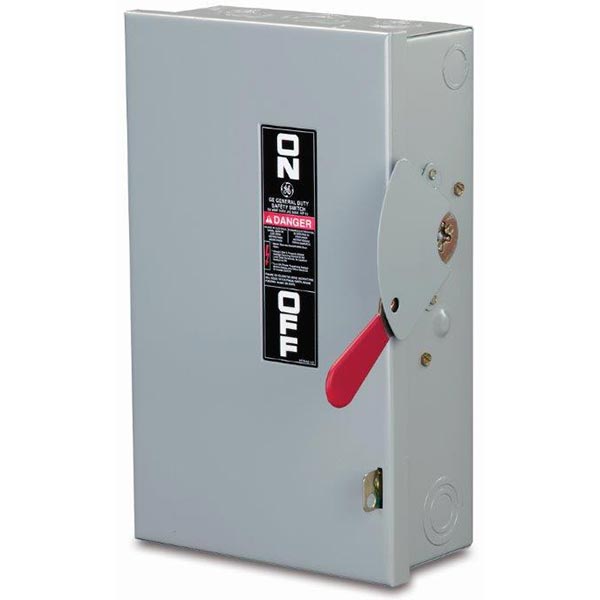

GE TG4324R SWITCH SAF 240VAC 200A 3 1 50/60HZ 4 HDL

Product Description

The GE Spec-Setter TG4324R is a fusible general duty safety switch designed for 240 VAC systems with a 200 A current rating. It features three poles and is suitable for residential and light commercial applications. This switch ensures safe operation through its reliable design and robust materials.

• Fusible general duty switch rated for 240 volts and 200 amps
• Designed for use in residential and light commercial installations
• Complies with NEMA 3R enclosure standards

Product Highlights

This safety switch is built with a strong steel construction and offers features such as a quick-make, quick-break mechanism for reliable operation. The switch is UL listed, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: GE
• Manufacturer: ABB Electrification

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Number of Wires: 4
• Horsepower: 15 hp Standard Fuse/15 hp Time Delay
• Dimensions: 28.78 inches H x 13.4 inches W x 5.3 inches D
• Material: Steel
• Enclosure Type: NEMA 3R
• Short Circuit Current Rating: 100 kA
• Temperature Rating: 60/75 degrees C
• Actuator Type: Handle
• Mounting Type: Surface
