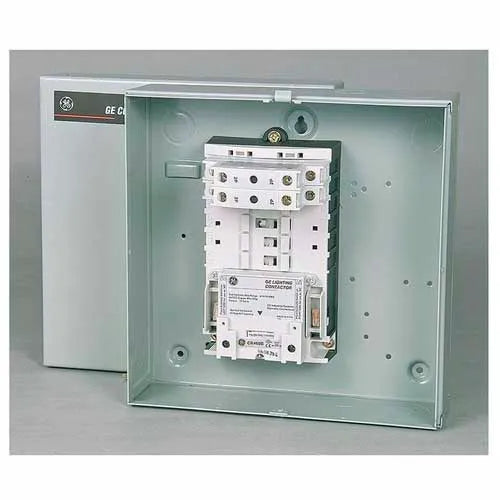

GE Industrial Solutions CR463L80AJA10A0 Lighting Contactor Panel

Product Description

The GE INDUSTRIAL SOLUTIONS CR463L80AJA10A0 is an electrically held lighting contactor. It features eight poles, each normally open (NO). This product is suitable for applications involving fluorescent, HID, tungsten, and general-use loads. It can also handle motor, resistive, and pilot duty ratings. The unit is housed in a NEMA 1 enclosure and operates at a coil voltage of 110 to 120 VAC. It is designed for surface mounting.

• Electrically held contactor with eight normally open poles
• Designed for a variety of lighting and motor loads
• Constructed in a NEMA 1 enclosure

Product Highlights

This contactor is ideal for controlling lighting in commercial and industrial settings. It provides reliable operation and is suitable for various applications.

Product Information

Standard Information

• Brand: GE INDUSTRIAL SOLUTIONS
• MPN: CR463L80AJA10A0

Technical Specifications

• Number of Poles: 8
• Contact Configuration: 8NO
• Coil Voltage: 110 to 120 VAC
• Full Load Amps: 30 A
• Frequency Rating: 50/60 Hz
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Standards & Approvals: cUL, UL 508 Listed, CE Certified
• Horsepower @ 1 Phase - 120V: 1
• Horsepower @ 1 Phase - 240V: 2
• Horsepower @ 3 Phase - 208V: 3
• Horsepower @ 3 Phase - 240V: 5
• Horsepower @ 3 Phase - 480V: 10
• Horsepower @ 3 Phase - 575V: 15
