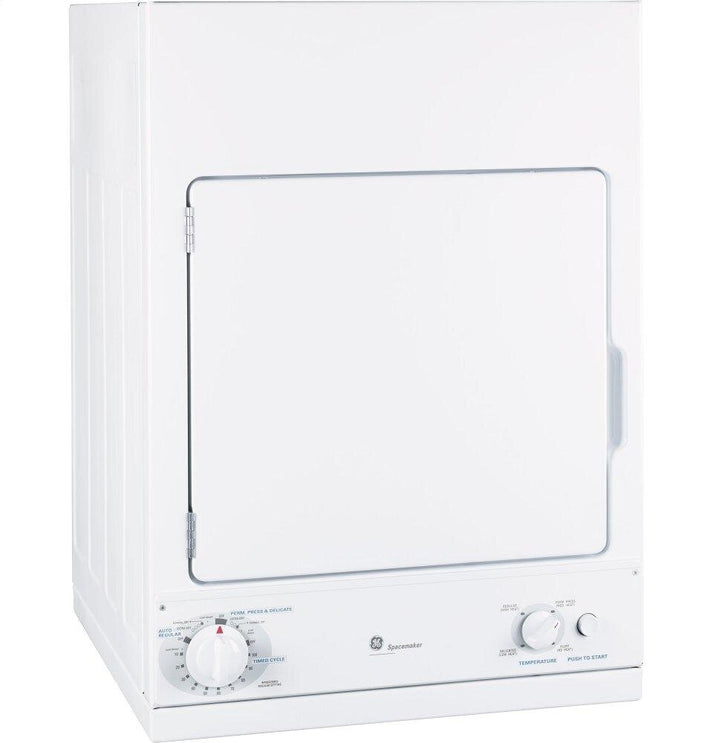

Ge dsks433ebww Electric Dryer 3.6 Cu Ft 24 Inch Stackable

Product Description

The GENERAL ELECTRIC dsks433ebww is a 24-inch stationary electric dryer rated at 3.6 cubic feet of drum capacity, designed for residential installations where space is limited. Operating on a 240/208-volt, 30-amp circuit at 60 Hz, this unit uses thermostat-controlled air temperature monitoring to reduce fabric wear and deliver consistent drying results across multiple fabric types. The rotary control interface with a separate start switch keeps operation straightforward. It is installed by licensed electricians and appliance technicians and is well suited for laundry closets, apartments, and stacked configurations.

This dryer is intended for residential use in tight-footprint laundry spaces. Its stackable product type makes it a fit for closet or utility-room installs where a full-depth laundry pair is not practical. The unit ships at approximately 92.0 pounds and has an overall footprint of 23.875 inches wide, 24.5 inches deep, and 33.25 inches tall. The optional stacking kit DSDR24F is available for pairing with a compatible washer. Exhaust can be routed four ways: rear, right, left, or top, giving installers flexibility in tight spaces.

Key Features

• 3.6 cubic foot drum capacity rated for small-load residential drying
• Thermostat-based automatic dry control monitors air temperature to protect fabrics
• 4-way exhaust options (rear, right, left, top) for flexible ducting in confined spaces
• 3 drying cycles: Regular (Cottons), Easy Care/Permanent Press, and Air Fluff
• 4 heat selections plus timed dry up to 140 minutes
• Removable up-front lint filter for accessible cleaning without moving the unit
• Stackable configuration with optional stacking kit DSDR24F

Compatibility

Designed as a stackable electric dryer for residential laundry installations. Compatible stacking kit model DSDR24F is available for pairing with a matching washer unit.

Installation Notes

Installation requires a dedicated 240/208-volt, 30-amp circuit and must be performed in accordance with the National Electrical Code (NEC) and all applicable local codes. Power must be fully disconnected at the breaker before making any electrical connections. Duct the exhaust to the exterior of the structure using rigid or semi-rigid metal duct per manufacturer and code requirements. When stacking, use only the specified stacking kit and verify that the combined unit weight is within floor-load tolerances before finalizing the install.

Technical Specifications

• Total Capacity: 3.6 cubic feet
• Voltage: 240/208 volts
• Amperage: 30 amps
• Frequency: 60 Hz
• Fuel Type: Electric
• Number of Cycles: 3
• Heat Selections: 4
• Timed Dry Maximum: 140 minutes
• Exhaust Options: 4-way (Rear, Right, Left, Top)
• Control Type: Rotary with separate start switch
• Control Location: Mid-band
• Automatic Dry Control: Yes
• Lint Filter Location: Removable up-front
• Product Type: Stackable
• Color: White on White
• Overall Width: 23.875 inches
• Overall Depth: 24.5 inches
• Overall Height: 33.25 inches
• Net Weight: 87.0 pounds
• Approximate Shipping Weight: 92.0 pounds
• Optional Stacking Kit: DSDR24F
• Parts Warranty: Limited 1-year entire appliance
• Labor Warranty: Limited 1-year entire appliance

Standard Information

• Brand: GENERAL ELECTRIC
• Manufacturer Part Number: dsks433ebww
