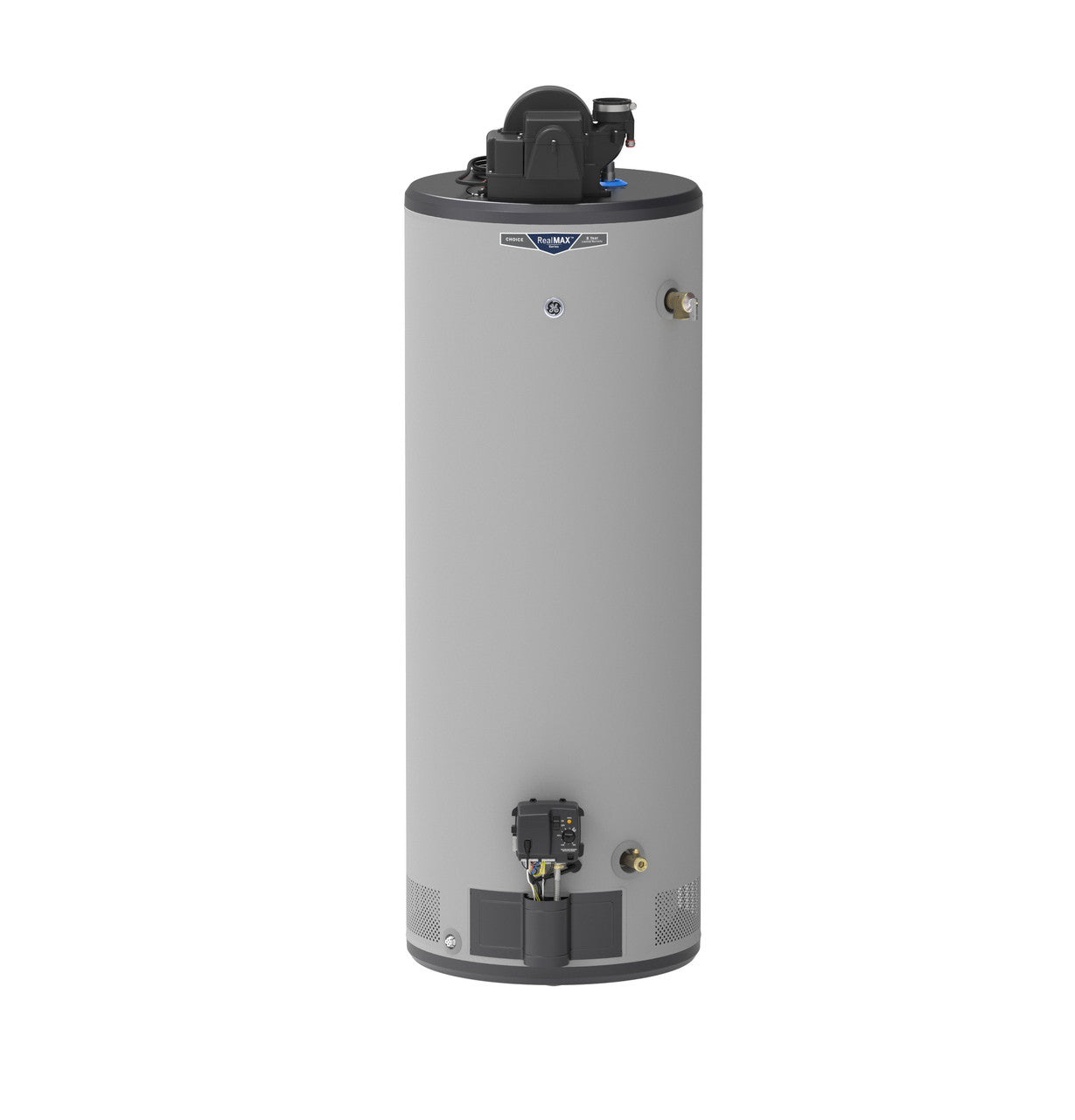

Ge Appliances GG50T08AYV RealMAX Choice name 50-gallon tall

Product Description

The GE APPLIANCES GG50T08AYV RealMAX Choice 50-Gallon Tall Natural Gas Power Vent Water Heater provides easy venting options with lengths up to 150 feet and either vertical or horizontal termination. With its 50-gallon water tank, this unit provides plenty of hot water for a family of up to five people. It delivers 82 gallons of hot water in the first hour of use.

• Power Vent offers flexible venting options with either vertical or horizontal termination PVC, ABS or CPVC.
• Holds a true 50 gallons of water.
• SmartShield Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.

Product Highlights

This water heater features a brass drain valve, a self-diagnostic system, and is made in America.

Product Information

Standard Information

• Brand: GE APPLIANCES
• Manufacturer Part Number: GG50T08AYV
• Country of Origin: US

Technical Specifications

• Color Appearance: Gray
• Unit Capacity: 50 Gallons
• Altitude Rating: 10,100 ft
• Anode Rod: Magnesium
• Bin Testing: High
• Configuration: Tall
• Controls: LED Indicator
• Drain Valve Type: Brass
• Family Size: 3-5 or more People
• Fuel Type: Natural Gas
• FVIR Safety System: Yes
• Gas Valve: Self Powered
• Height Description: Tall
• Overheat Protection: Yes
• Pilot Light Window / Button: Yes
• Product Type: Power Vent Gas
• Temp & Pressure Relief Valve: Yes
• Temperature Setting: 45-160 F Range
• UEF: 0.68
• Vent: Power Vent
• Water Connection Location: Top
• Burner BTU Size (k): 42
• First Hour Rate (FHR): 82 Gallons
• Connection Sizes - Hot Water Outlet (MNPT): 3/4"
• Connection Sizes - Water Inlet (MNPT): 3/4"
• Height to Gas Control: 11.5 in
• Net Weight: 171 lb
• Overall Depth: 22 in
• Overall Height: 65.8 in
• Overall Width: 22 in
• Product Diameter: 22 in
• Product Height (to top of unit): 58.25 in
• Product Height (to top of water inlet/outlet connections): 59.75 in
• Vent Size: 2" or 3" PVC, CPVC, ABS or PP
• Heating Capacity: 42000 Btu/hr
• Ignition Type: Pilot
• Tank Capacity: 50 Gal
• Type: Power Vent
• Venting Options: Vertical or horizontal termination with PVC, ABS, or CPVC
• Venting Length: Up to 150ft
