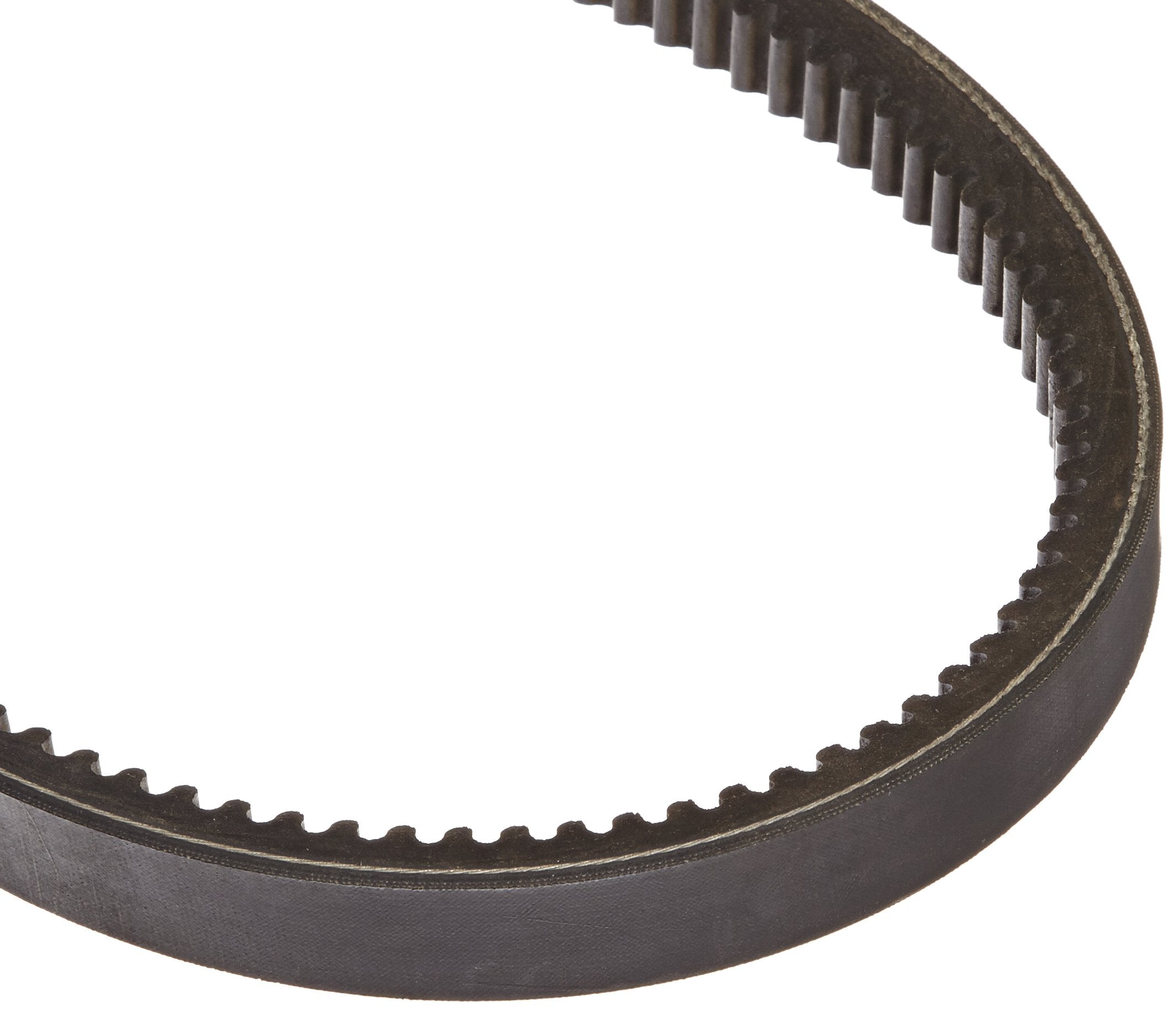

Gates CX120 Tri-Power Belt CX Section CX120 Size

Product Description

The Gates CX120 Tri-Power Belt is a high-performance V-belt designed for optimum power transmission across a variety of industrial applications. Engineered with EPDM rubber, this belt offers exceptional resistance to weathering, oils, water, and some solvents, making it a durable choice for any setting.

• EPDM construction ensures resistance to harsh conditions.
• Strongly bonded cords reduce bending stress and extend the belt's life.

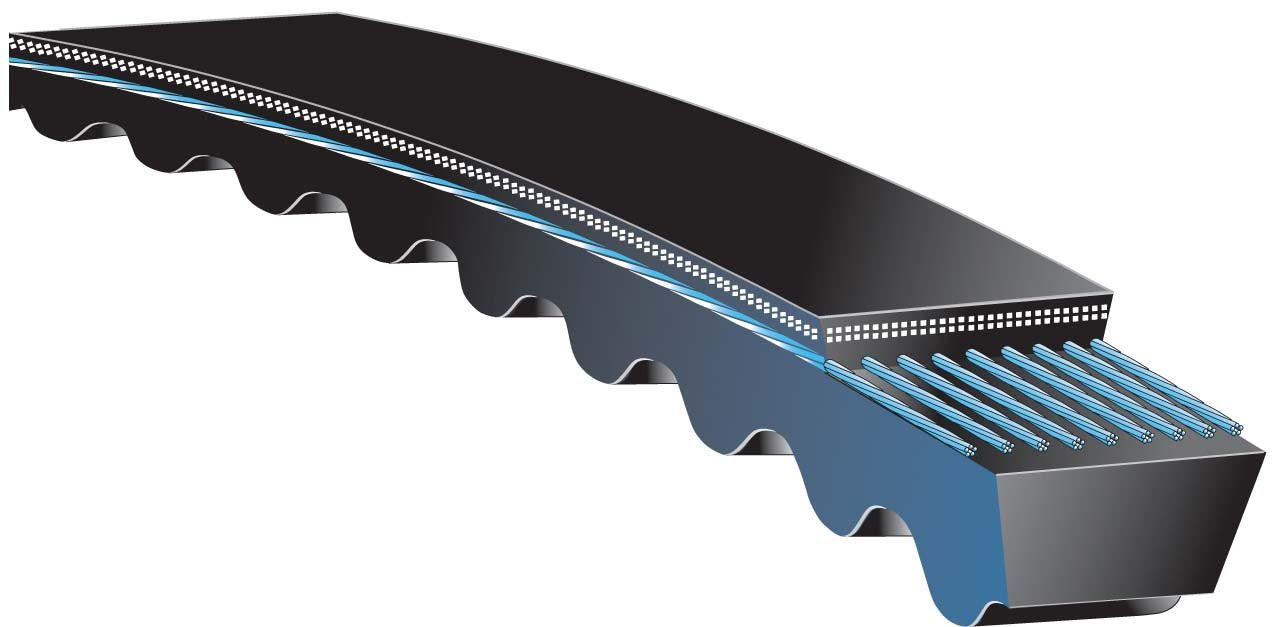

• Designed with notches for flexibility and even load distribution.

Product Highlights

The belt features specially machined edges for improved sheave contact, minimizing slip and wear. It operates effectively within a temperature range of -60 to +250 degrees Fahrenheit, meeting rigorous RMA oil and heat resistance standards.

Product Information

Standard Information

• Material: Ethylene Propylene Diene Monomer (EPDM) rubber
• Temperature Range: -60 to +250 degrees Fahrenheit

Technical Specifications

• Size: CX120
• Width: 7/8 inches
• Height: 17/32 inches
• Outside Circumference: 124 inches
• Compliance: RMA, ISO standards
