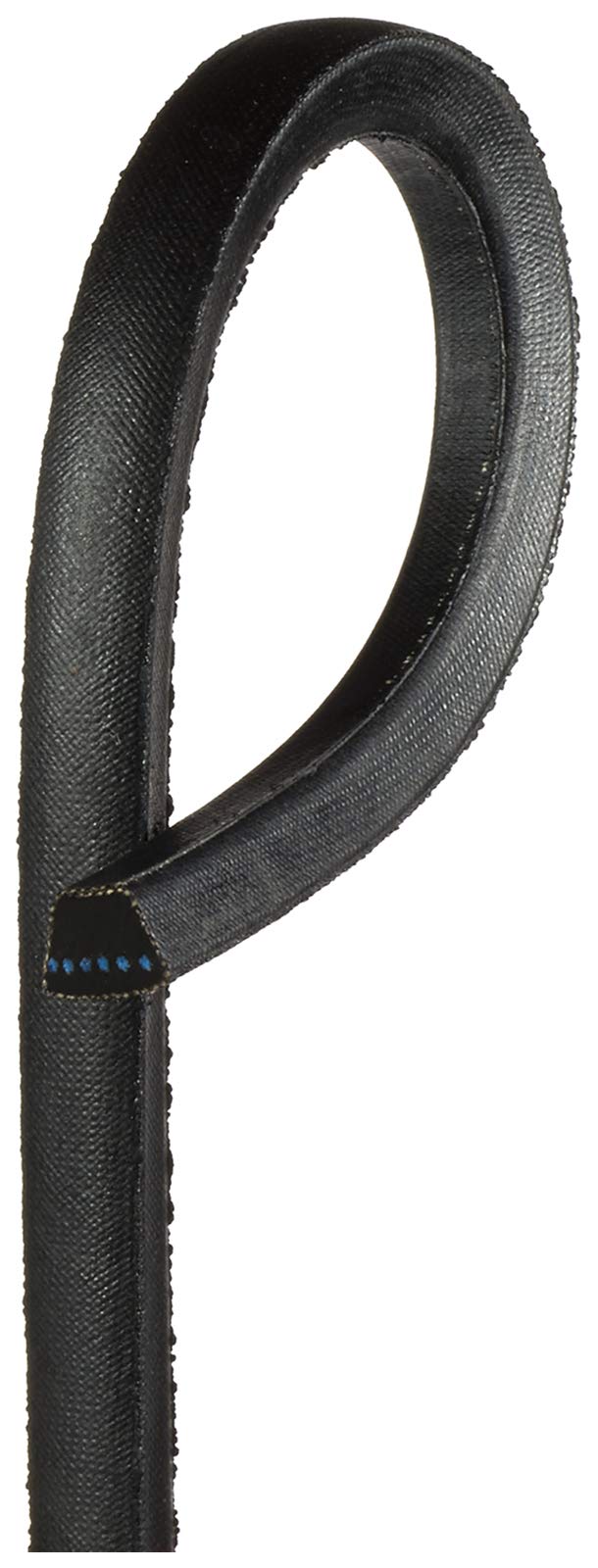

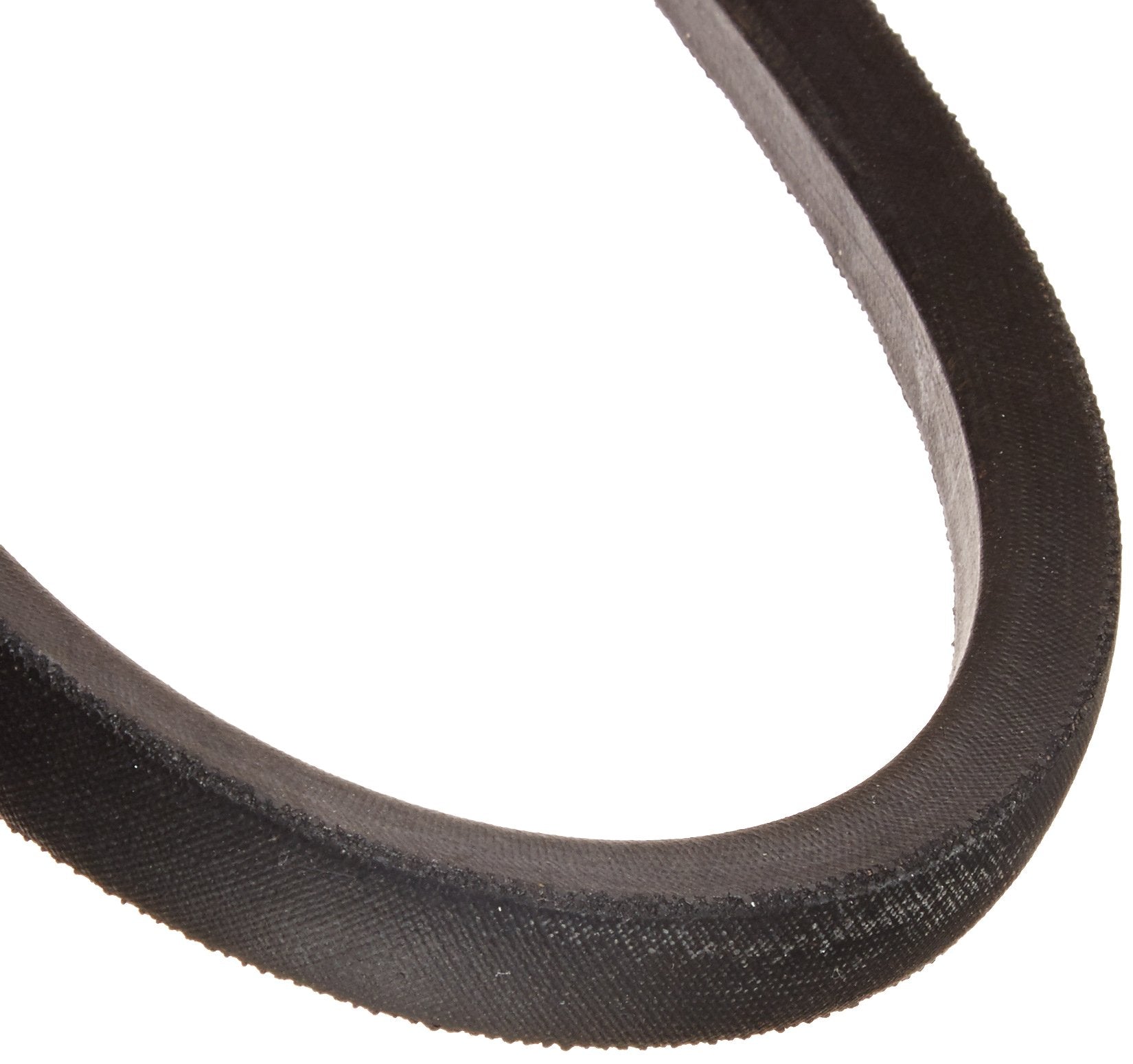

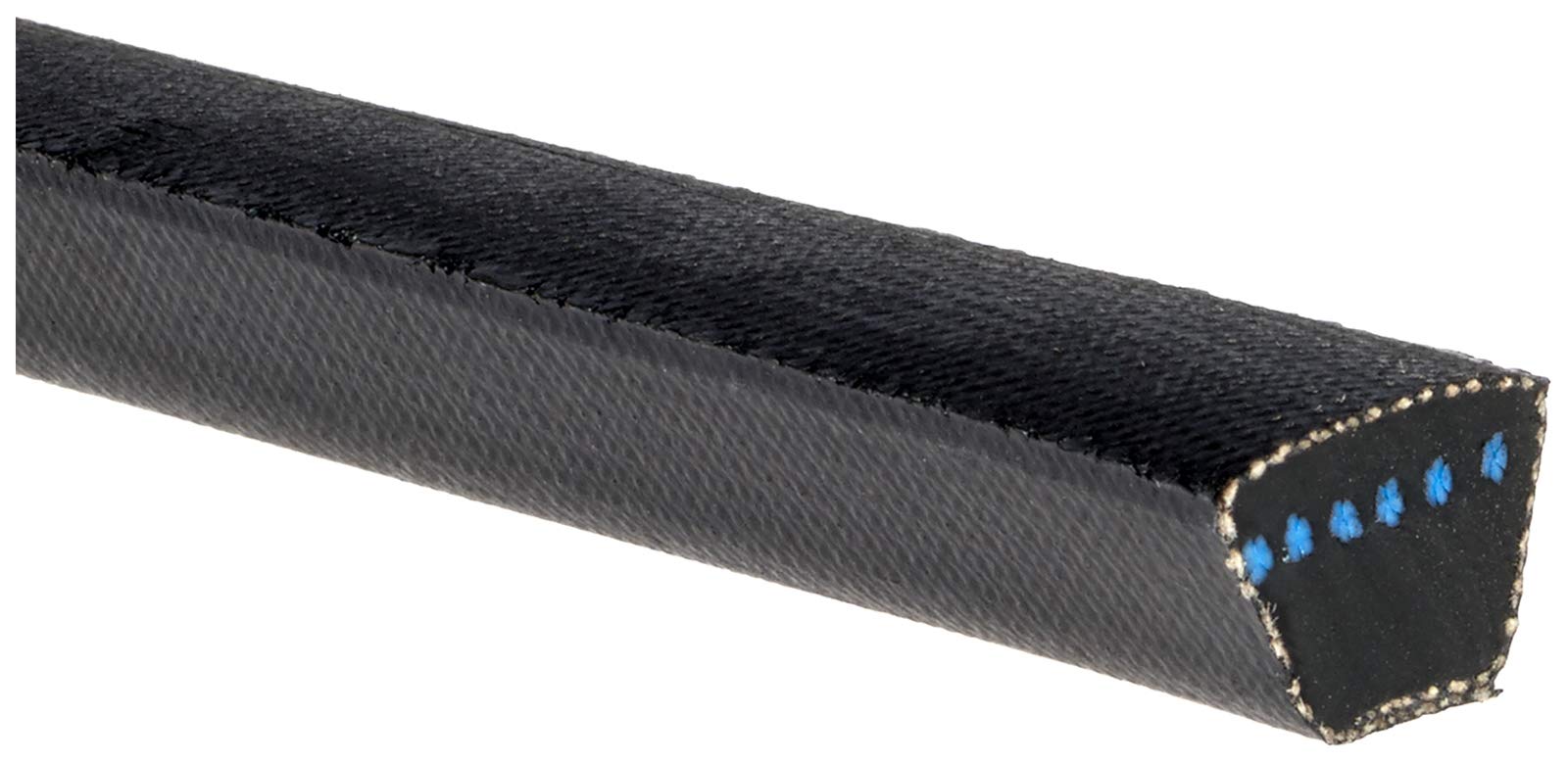

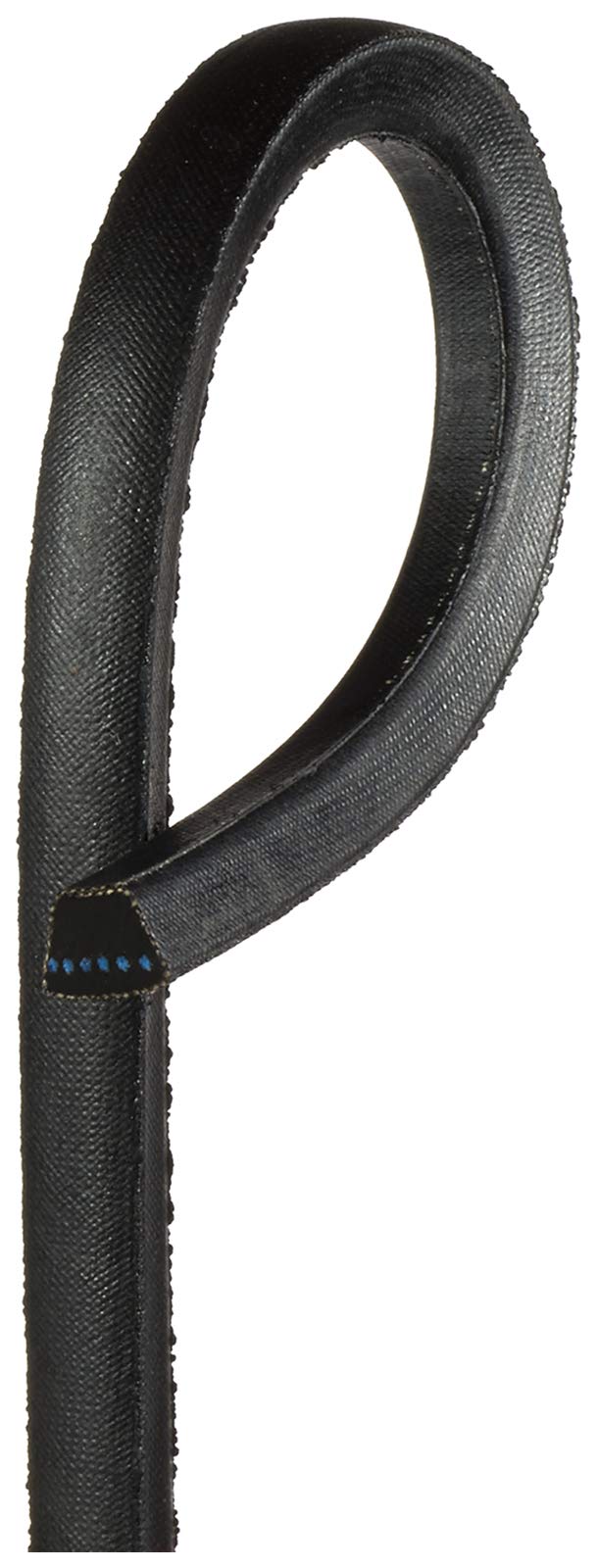

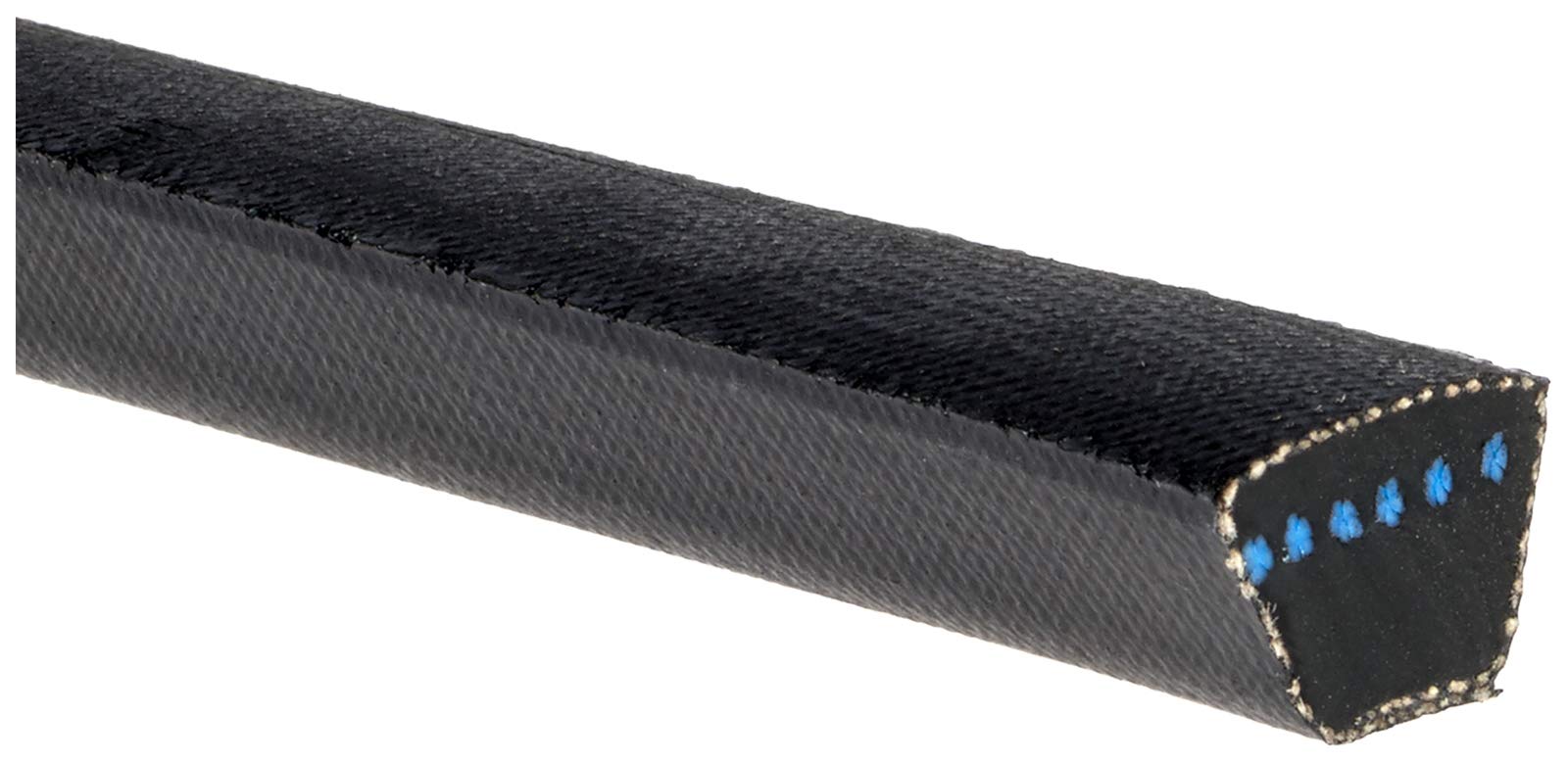

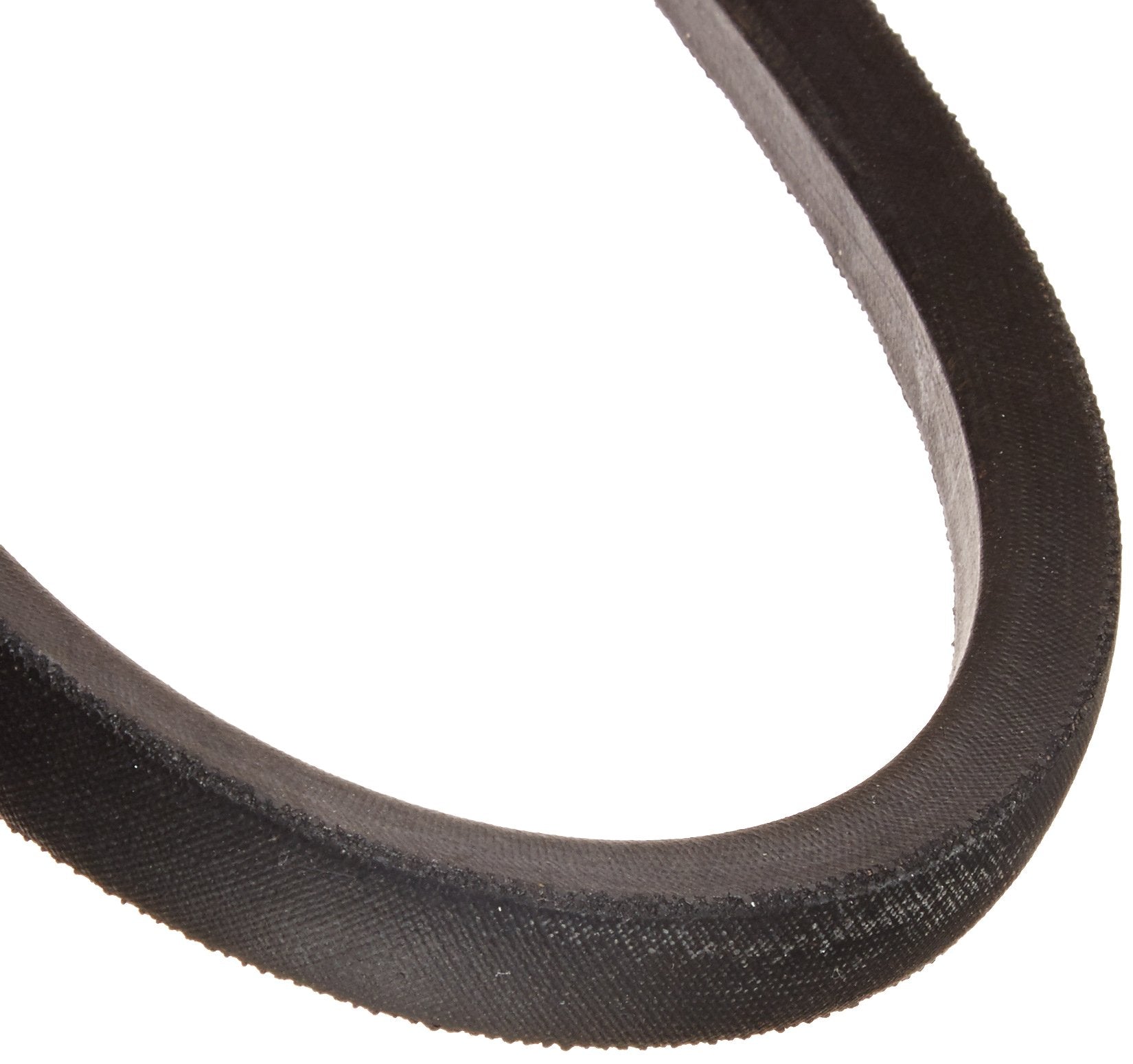

Gates B54 Hi-Power II Belt 57 inch outside circumference

Product Description

The Gates B54 Hi-Power II Belt is a durable V-belt constructed from polyester and rubber. Designed for power transmission applications, it is compatible with vacuum cleaners and suitable for all industrial uses, including HVAC systems, conveyor systems, centrifugal pumps, air compressors, and crushers. This belt resists oil, heat, ozone, sunlight, weather, and aging, ensuring reliable performance. It is part of the V80 matching system for multi-belt drives.

• Constructed from Polyester and Rubber for durability and flexibility.

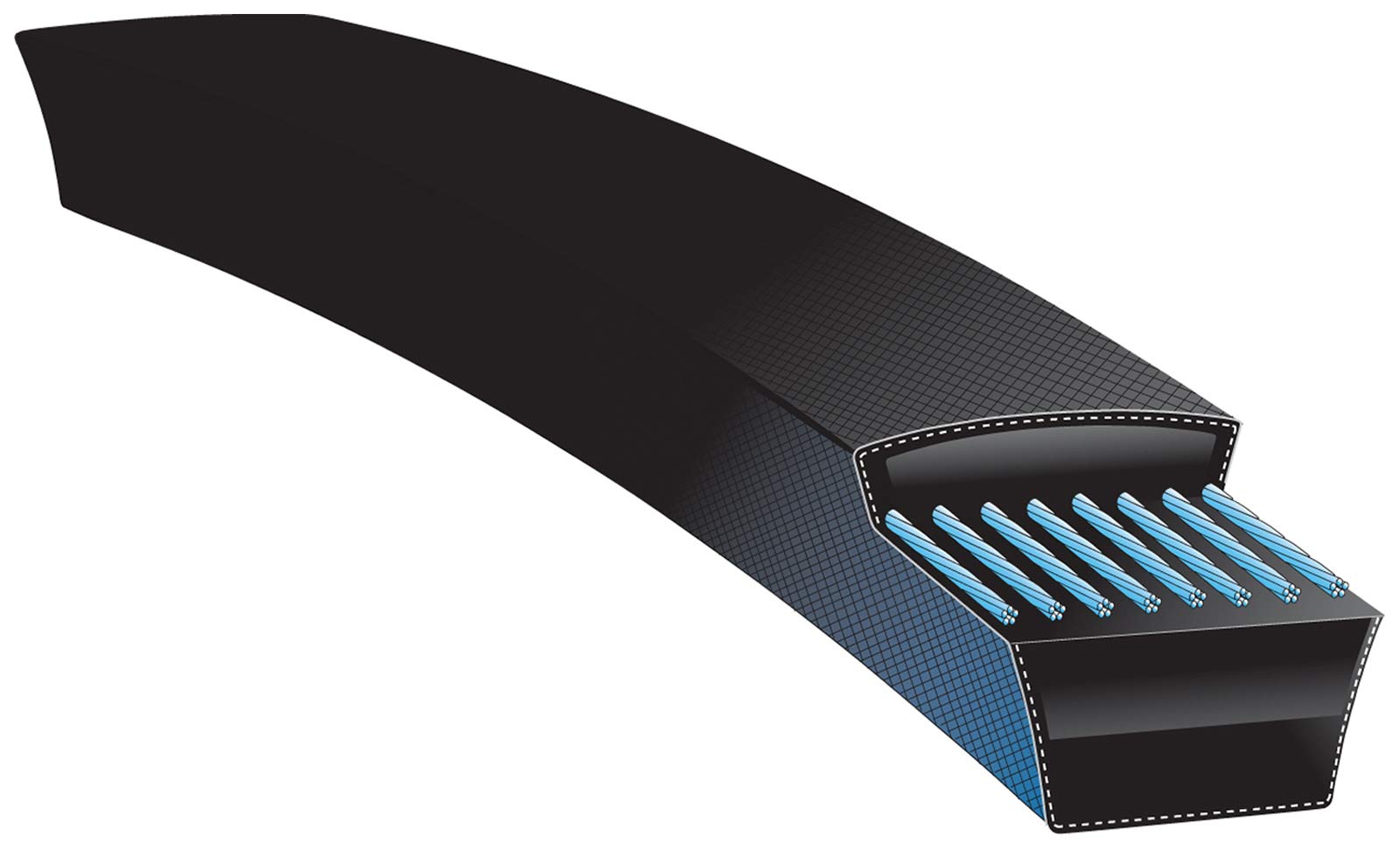

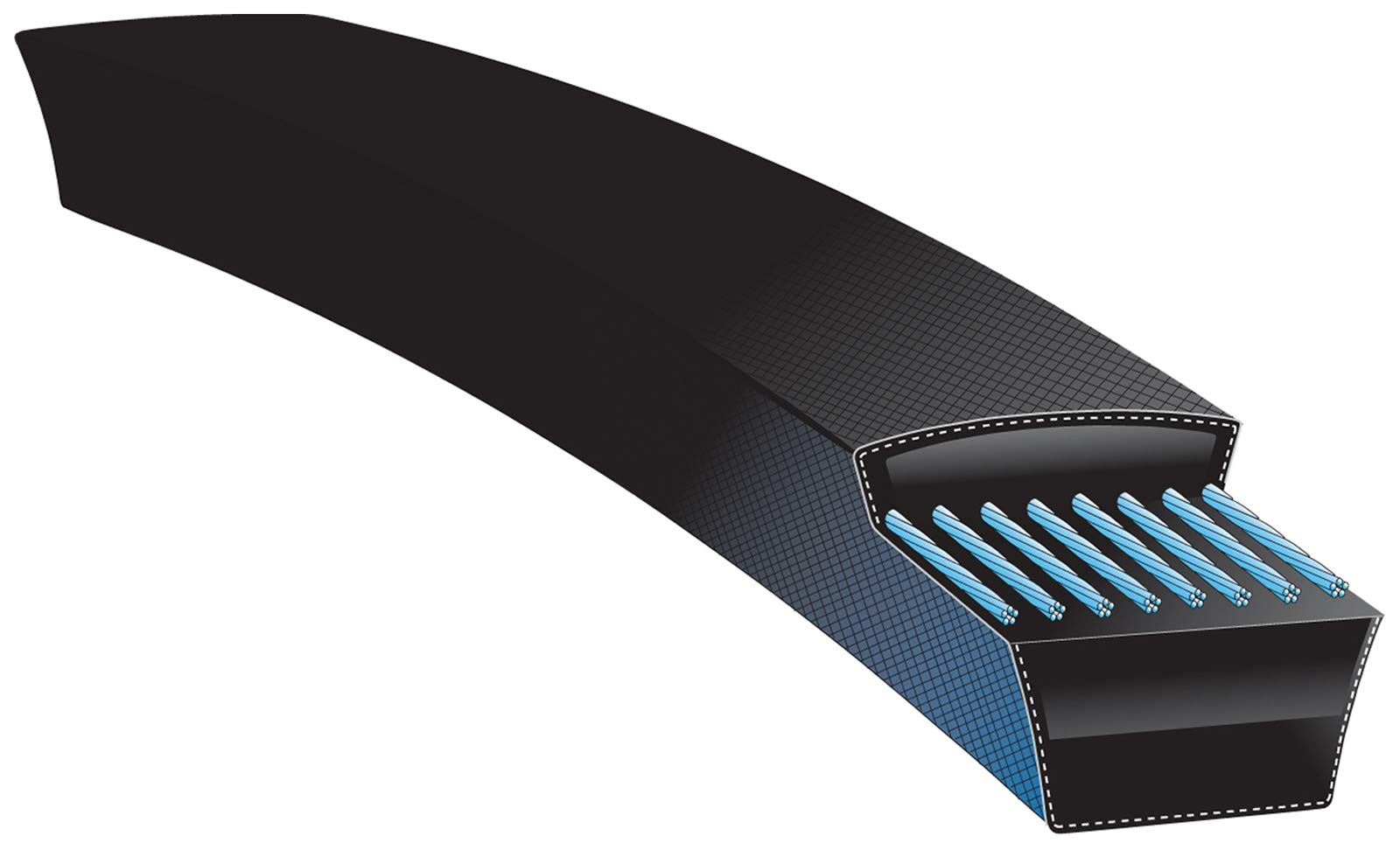

• Features Flex-Bonded Cords for equal load distribution and reduced bending stress.
• Meets RMA oil and heat resistance standards and static conductivity requirements.

Product Highlights

Durable V-belt for power transmission, resistant to oil and heat, with V80 matching system.

Product Information

Standard Information

• Brand: GATES
• Manufacturer Part Number: B54
• Country of Origin: USA

Technical Specifications

• Manufacturer: Gates
• MPN: B54
• Product Type: Industrial V-Belt
• Belt Style: Hi-Power II V-Belt
• Material: Polyester, EPDM Rubber
• Reinforcing Cord Material: Polyester

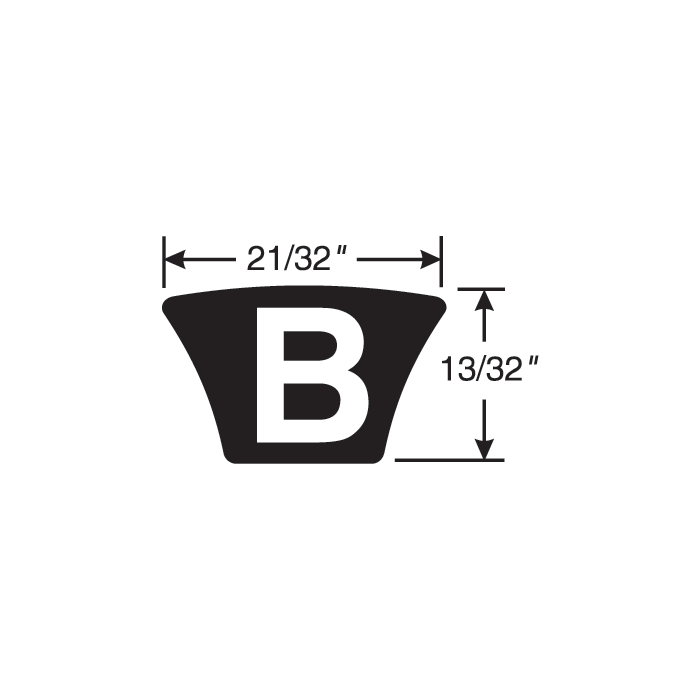

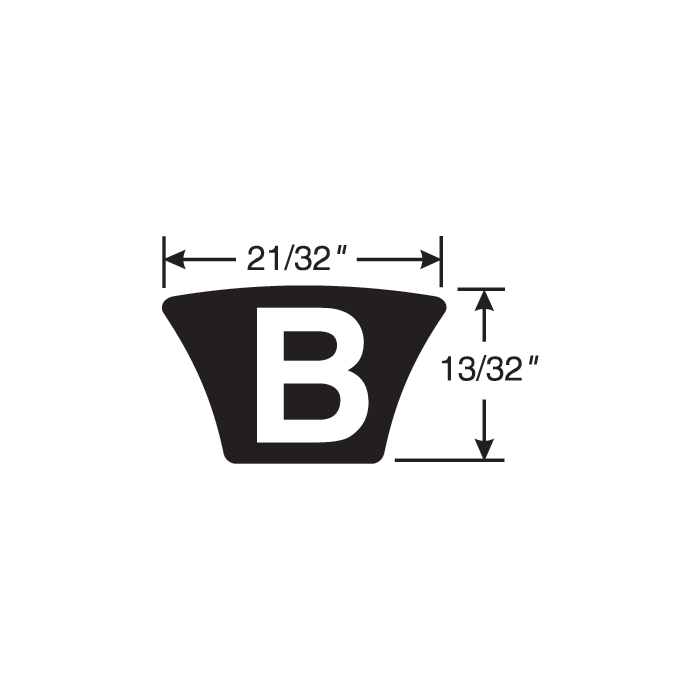

• Belt Section: B
• Inside Circumference: 54 inches
• Outside Circumference: 57 inches (1448 mm)
• Effective Length: 56.75 inches (1441 mm)
• Top Width: 21/32 inches (0.66 inches / 17 mm)
• Thickness: 13/32 inches (0.41 inches / 10 mm)
• Number of Strands: 1
• Surface Type: Smooth
• Resistance: Oil, Heat, Ozone, Sunlight, Weather, Aging
• Standards: ISO 1813, RMA
• Static Conductive: Yes
• Matching System: V80
• Operating Temperature Range: -22°F to +140°F (-30°C to +60°C)
• Angle: 38 degrees
• Compatible Devices: Vacuum Cleaner
