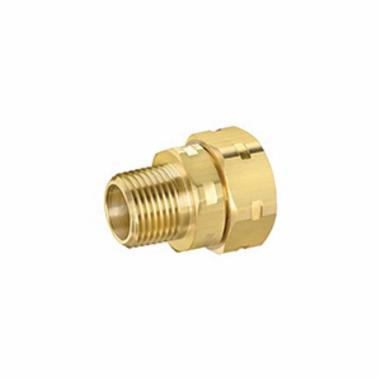

GASTITE XRFTG-16 Fitting 1 in

Product Description

The GASTITE XRFTG-16 fitting features a patented design specifically developed to ensure electrical continuity by contouring the metal shield. This fitting allows for straightforward installation with minimal torque required. Made from reusable brass, it features a reliable metal-to-metal seat that eliminates the need for O-rings or gaskets.

• Metal locking feature
• Tool-free flare fitting design
• Metal-to-metal multi-point seal without O-ring or gasket

Product Highlights

The GASTITE XRFTG-16 fitting is suitable for efficient connection of flexible gas piping to various gas supplies, distribution manifolds, or gas appliances, ensuring reliable sealing and easy installation.

Product Information

Standard Information

• Connection Type: MNPT
• Material: Brass

Technical Specifications

• Pressure Rating: 25 psi
• Series: XR3 Series
• Size: 1 in
• Temperature Rating: -40 to 160 deg F
• Nominal Size: 1 Inch
• End Style: NPT
• Includes: Adapter, Split Bushing and Nut
