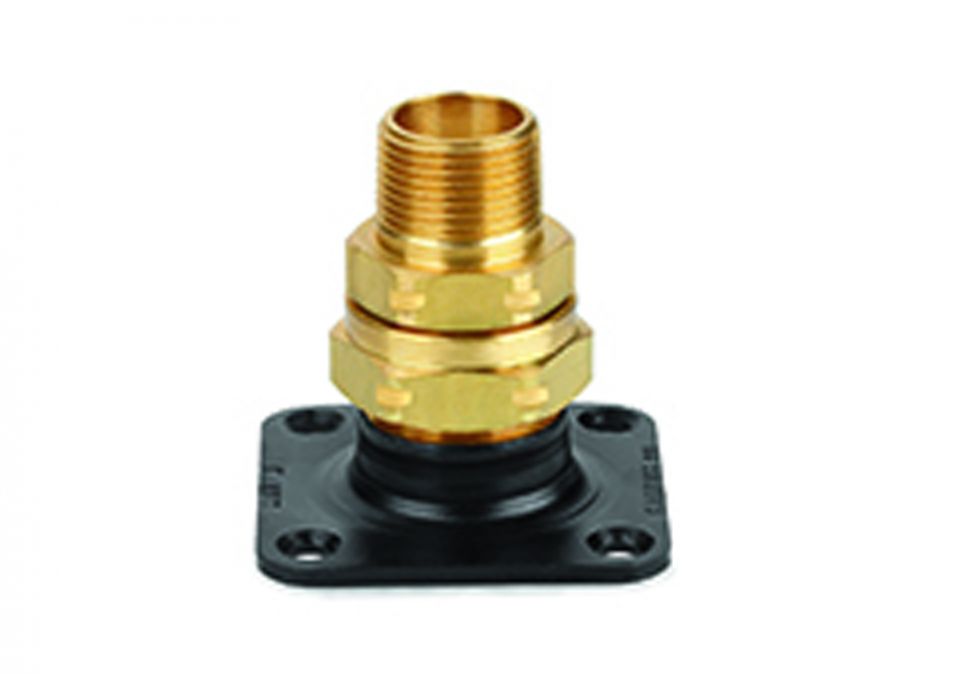

Gastite XR3TRM-8-NF-12 Termination Fitting

Product Description

The Gastite XR3TRM-8-NF-12 is a termination fitting that establishes a fixed point stub-out on walls or floor surfaces. This fitting connects flexible gas tubing to various gas supply systems, distribution manifolds, or gas appliances. It features a tool-less flare design and utilizes a metal-to-metal seal to enhance reliability.

• Tool-less flare design requires no special tools for installation.
• Metal-to-metal seal eliminates the need for split rings, O-rings, or gaskets.
• Self-guiding assembly helps achieve an even flare.

Product Highlights

The design of this fitting is suitable for use with FlashShield CSST, allowing the metal shield to maintain electrical continuity throughout the gas system.

Product Information

Standard Information

• Brand: Gastite
• Manufacturer: Gastite

Technical Specifications

• MPN: XR3TRM-8-NF-12
• Product Type: Termination Fitting
• Nominal Size: 1/2 inch
• End Style: NPT
• Operating Temperature: -40 to 160 degrees Fahrenheit
• Maximum Operating Pressure: 25 psi
• Fitting Material: Brass
• Flange Material: Steel with zinc coating or cast bronze
• Certifications: CSA, IAPMO, ICC
