Gastite XR3TRM-11-CB-12 Termination Fitting (3/4 in)

Product Description

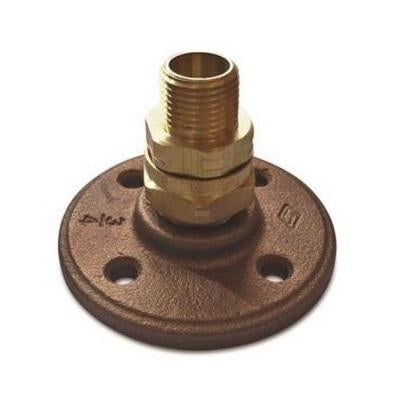

The Gastite XR3TRM-11-CB-12 is a brass termination fitting with a bronze flange designed for Gastite XR3 corrugated stainless steel tubing systems. It uses a patented Jacket-Lock feature to contour the metal shield for electrical continuity and provides a metal-to-metal seal that requires minimal torque. The fitting connects via 3/4 in NPT, is rated for 25 psi, and has an operating range of -40 to 160 F.

• Patented Jacket-Lock metal contouring for electrical continuity; metal-to-metal seal; fully reusable components
• 3/4 in NPT connection; pressure rating 25 psi; temperature rating -40 to 160 F
• Physical details: 1 in flange thread; 1-9/16 in hex nut; 1-3/8 in hex fitting; 4 in flange outer diameter

Product Highlights

Brass termination fitting with bronze flange for XR3 tubing, 3/4 in NPT, 25 psi, -40 to 160 F, Jacket-Lock continuity

Product Information

Standard Information

• Brand: GASTITE
• Manufacturer Part Number: XR3TRM-11-CB-12
