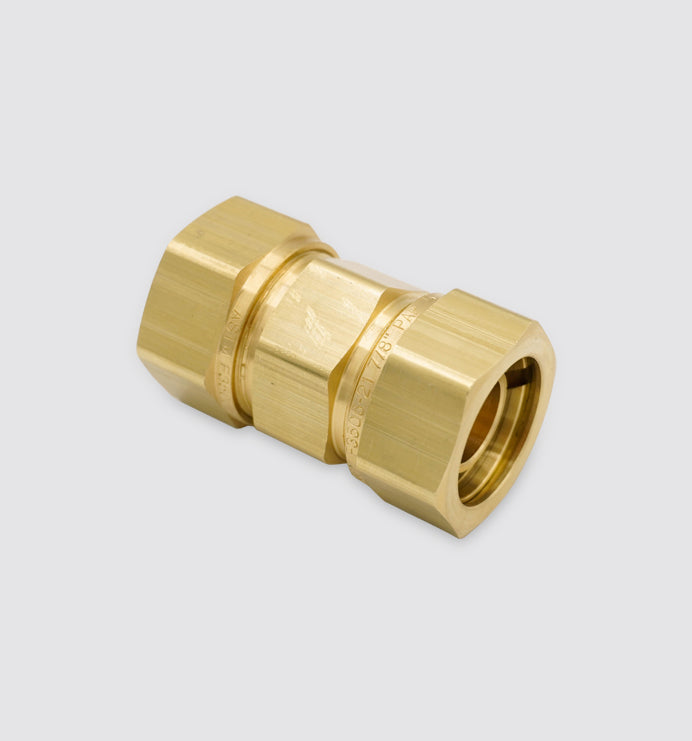

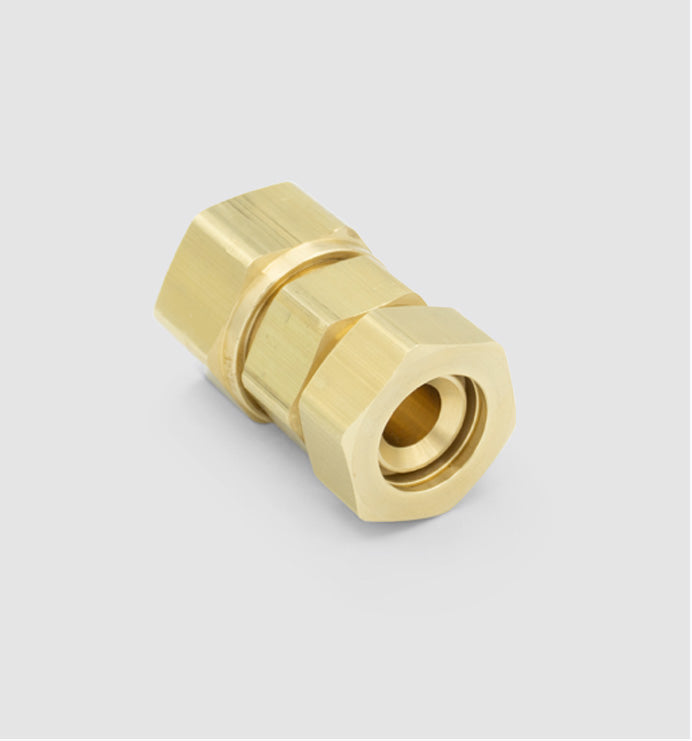

Gastite 6215 Python Coupler Compression Fitting Assembly 5/8 inches

Product Description

The GASTITE 6215 Python coupler is a PERT-AL-PERT line set and compression fitting system designed for split and mini-split systems, including heat pump applications. It is lightweight, half the weight of copper pipe, and is ICC-ES PMG-1675 Listed and tested to ASTM F3506-21 for chemical, UV, and kink resistance. Solid brass construction allows field application without special tools.

• For HVAC residential & commercial applications
• Lightweight, half the weight of copper pipe
• No need for a torch on site

Product Highlights

This fitting assembly features solid brass construction and can be applied without special tools. Approved for refrigerants R410a, R32, and R454b.

Product Information

Standard Information

• Brand: GASTITE
• Manufacturer Part Number: 6215
• Country of Origin: USA

Technical Specifications

• Maximum Design Pressure 1/4 3/4: 700psi, 7/8 is 650psi
• Maximum Design Temperature: 203F
• ID & Flow Rates: same as copper pipe
• Approved Refrigerants: R410a, R32, R454b
• Available Pipe Sizes: 1/4, 3/8, 1/2, 5/8, 3/4, 7/8
