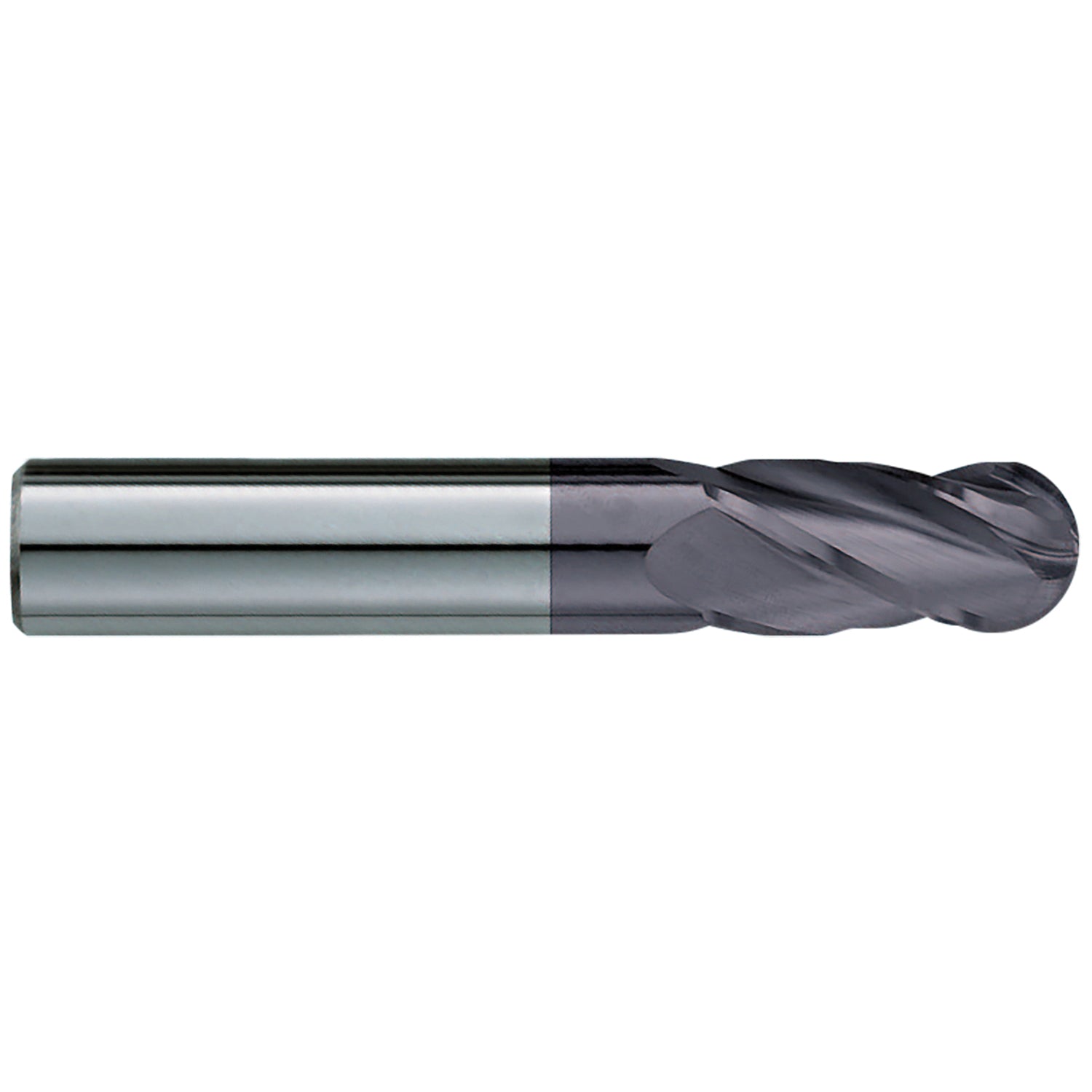

GARR GARRT-04017 Ball End Center Cutting Single End Stub Length End Mill

Product Description

The GARR GARRT-04017 is a ball end center cutting single end stub length end mill designed for precision cutting. This end mill features a cutter diameter of one thirty-second inch and an overall length of one and a half inches. It has four flutes and is ideal for dry or semi-dry machining applications.

• 1/32 inch cutter diameter
• 1-1/2 inch overall length
• Right hand cutting with a 30 degree helix angle

Product Highlights

The GARR GARRT-04017 is made from solid submicron carbide and has a TiALN coating for improved performance and durability.

Product Information

Standard Information

• Brand: GARR
• MPN: GARRT-04017

Technical Specifications

• Cutter Diameter: 1/32 inch
• Overall Length: 1-1/2 inch
• Length of Cut: 1/16 inch
• Number of Flutes: 4
• Shank Diameter: 1/8 inch
• Shank Length: 1-7/16 inch
• Material: Solid Submicron Carbide
• Finish: TiALN Coated
• Helix Angle: 30 degree
• Flute Type: Spiral
• Cutting Direction: Right Hand
