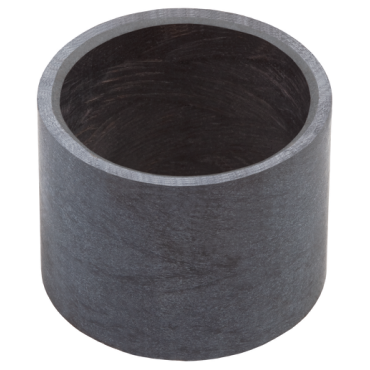

Garlock GM2024-016 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

The Garlock GM2024-016 is a self-lubricating cylindrical bushing designed for various mechanical applications. This bushing features a combination of PTFE and high-strength fibers. It provides effective wear resistance and can operate under significant static and dynamic loads.

• Suitable for temperatures ranging from minus three hundred twenty degrees Fahrenheit to three hundred twenty-five degrees Fahrenheit.
• Has excellent compressive strength of sixty thousand psi.
• Can handle static loads up to thirty thousand psi and dynamic loads up to twenty thousand psi.

Product Highlights

The Garlock GM2024-016 combines durability and high performance, making it ideal for tough applications.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101969098

Technical Specifications

• I.D.: 1.25 inches
• O.D.: 1.5 inches
• Length: 1 inch
• Material: PTFE
• Max. Static Pressure: 30,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range: -320 °F to 320 °F
• Lubrication: Self-Lubricating
• Bore Type: Round Bore
