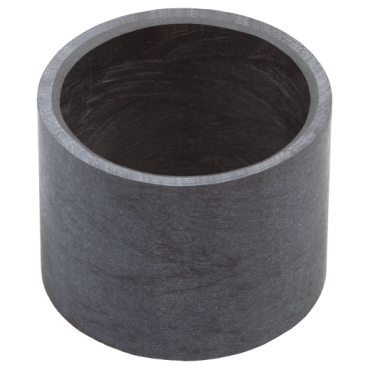

Garlock GM1620-020 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

The Garlock GM1620-020 is a self-lubricating cylindrical bushing designed for demanding applications. This bushing provides high performance in various environments. It offers unique properties due to its PTFE composition.

• Features a combination fiber surface liner for durability
• Operates effectively under high static and dynamic loads
• Temperature range from -320 °F to 325 °F

Product Highlights

Garlock bearings are built to withstand tough conditions, making them suitable for pivoting applications with excellent resistance to shock loads.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: GM1620-020

Technical Specifications

• Bore Type: Round Bore
• Inner Diameter: 1 inch
• Outer Diameter: 1.25 inches
• Length: 1.25 inches
• Max. Static Pressure: 30,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Material: PTFE
• Temperature Range Max: 320 °F
• Temperature Range Min: -320 °F
• Weight: 0.038 lbs
• Lubrication: Self-Lubricating
