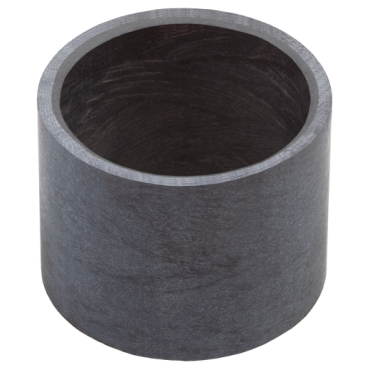

Garlock GM1620-018 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

Garlock GM1620-018 is a self-lubricating GAR-MAX cylindrical bushing. This bushing is designed with a fiber surface liner made from PTFE and high-strength fibers, offering a wear-resistant surface. The structure allows for operation at high static loads and offers high compressive strength.

• Features excellent shock load resistance.
• Suitable for harsh pivoting applications.
• Wide temperature range from -320 °F to 325 °F.

Product Highlights

This bushing provides durability and resilience under tough conditions. The unique composition ensures a long lifespan and reliable performance.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 102223452

Technical Specifications

• Material: PTFE
• Inner Diameter: 1 inch
• Outer Diameter: 1.25 inches
• Length: 1.125 inches
• Max. Static Pressure: 30,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range (Max): 320 °F
• Temperature Range (Min): -320 °F
