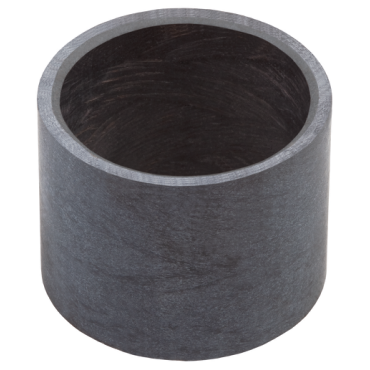

Garlock GM1216-020 Self-Lubricating GAR-MAX Cylindrical Bushing

Product Description

The Garlock GM1216-020 is a self-lubricating cylindrical bushing designed for heavy-duty applications. It features a combination fiber surface liner made from high-strength fibers and PTFE. The braided structure is encapsulated by epoxy resin with a self-lubricating filler, providing a durable wear-resistant surface.

• Recommended for static loads up to thirty thousand psi.
• Maximum dynamic loads can reach twenty thousand psi.
• Temperature operating range from negative three hundred twenty degrees Fahrenheit to three hundred twenty-five degrees Fahrenheit.

Product Highlights

This bushing is suitable for environments where standard bearings may fail. It is particularly effective under shock loads and in pivoting applications.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: GM1216-020

Technical Specifications

• Inner Diameter: three-quarters inches
• Outer Diameter: one inch
• Length: one and one-quarter inches
• Material: PTFE
• Lubrication: Self-Lubricating
• Max. Static Pressure: thirty thousand psi
• Max. Dynamic Pressure: twenty thousand psi
• Temperature Range: Negative three hundred twenty degrees Fahrenheit to three hundred twenty-five degrees Fahrenheit
