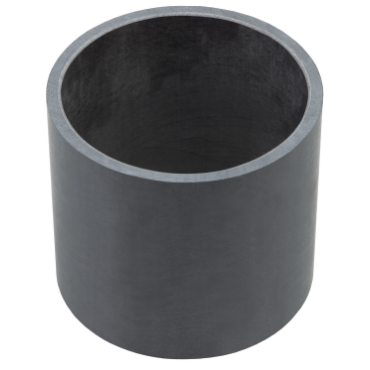

Garlock GF4856-064 Self-Lubricating GAR-FIl Cylindrical Bushing

Product Description

Garlock is known for its GF4856-064 self-lubricating GAR-FIl cylindrical bushing. This product features a filled PTFE liner bonded to a composite backing, designed for maximum bearing life without lubrication.

• Inner Diameter of three inches
• Outer Diameter of three point five inches
• Length of four inches

Product Highlights

This bushing is suitable for a wide range of applications, providing a durable bearing surface and resistance to chemicals.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part #: 101458654

Technical Specifications

• Material: PTFE
• Temperature Range [Max]: 400 °F
• Temperature Range [Min]: -320 °F
• Max. Dynamic Pressure: 20,000 psi
• O.D.: 3.5 in
• I.D.: 3 in
• Length: 4 in
• Lubrication: Self-Lubricating
• Bore Type: Round Bore
• Max. Static Pressure: 20,000 psi
• Weight: 0.71 LB
• EAN or UPC: 13992724229
• Has Flange: No
• Groove Type: No Groove
• Inch/Metric: Inch
