Garlock Bearings LLC BB0806DU Self-Lubricating Metric DU Flanged Bushing

Product Description

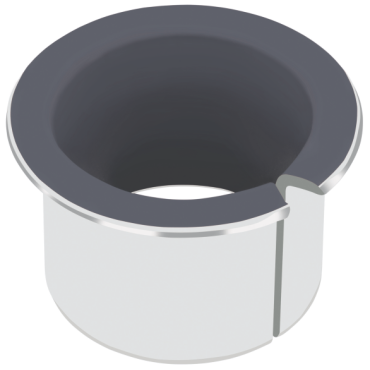

The Garlock Bearings LLC BB0806DU is a self-lubricating metric DU flanged bushing. It features an inner diameter of eight millimeters and an outer diameter of ten millimeters. This bushing has a length of six millimeters and is made from PTFE material.

• Self-lubricating design for minimal maintenance.
• Steel backing provides high load capacity and structural rigidity.
• Suitable for a wide range of applications.

Product Highlights

This bushing is designed for both high and low load applications and can withstand extreme temperatures from minus three hundred twenty-eight degrees Fahrenheit to five hundred thirty-six degrees Fahrenheit. It is particularly effective in agricultural, automotive, and industrial machinery settings.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: BB0806DU

Technical Specifications

• I.D.: 8 mm
• O.D.: 10 mm
• Length: 6 mm
• Material: PTFE
• Bore Type: Round Bore
• Flange Thickness: 1 mm
• Lubrication: Self-Lubricating
• Max. Static Pressure: 36,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range [Max]: 536 °F
• Temperature Range [Min]: -328 °F
• Has Flange: Yes
