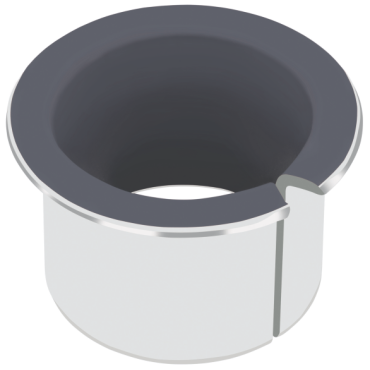

Garlock BB1617DU Self-Lubricating Metric DU Flanged Bushing

Product Description

The Garlock BB1617DU is a self-lubricating metric flanged bushing designed for various applications. This bushing provides a solution for reducing friction and wear in mechanical systems.

• Metric dimensions for precision applications
• Self-lubricating PTFE material
• Suitable for high-pressure environments

Product Highlights

The bushing is made from PTFE which offers excellent chemical resistance and a wide temperature range. Its design includes a flange for easy installation and stability.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: BB1617DU

Technical Specifications

• Inner Diameter: 16 mm
• Outer Diameter: 18 mm
• Length: 17 mm
• Material: PTFE
• Max. Static Pressure: 36,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range: -328 °F to 536 °F
• Flange Thickness: 1 mm
• Lubrication: Self-Lubricating
• Has Flange: Yes
• Bore Type: Round Bore
• Groove Type: No Groove
• Weight: 0.017 LB
• EAN or UPC: 13992495358
