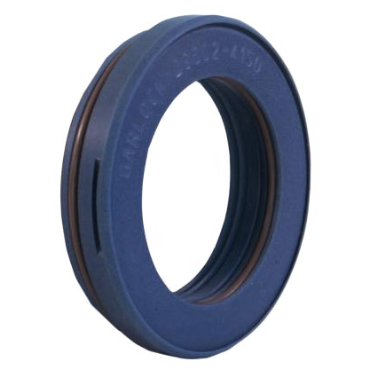

Garlock 29502-4115 ISO-GARD Bearing Isolator

Product Description

The Garlock ISO-GARD Bearing Isolator, MPN 29502-4115, is designed for robust performance in various industrial applications. The patented Cam-Lock system ensures a proper fit. This product features a non-contacting seal that prevents shaft scoring and reduces friction without needing lubrication.

• 4.313 inches shaft diameter
• 5.5 inches housing bore
• Flanged style for easy installation

Product Highlights

This bearing isolator provides excellent chemical resistance and a wide temperature range. It supports preventative maintenance programs and minimizes unscheduled downtime in operations.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 29502-4115

Technical Specifications

• Shaft Diameter: 4.313 inches
• Housing Bore: 5.5 inches
• Width: 0.748 inches
• Flange Length: 0.375 inches
• Seal Type: Labyrinth
• Material: Filled PTFE
• Pressure Tolerance: Ambient
• Maximum Temperature: 400 °F
• Minimum Temperature: -22 °F
• Weight: 0.526 pounds
• EAN or UPC: 717744167158
