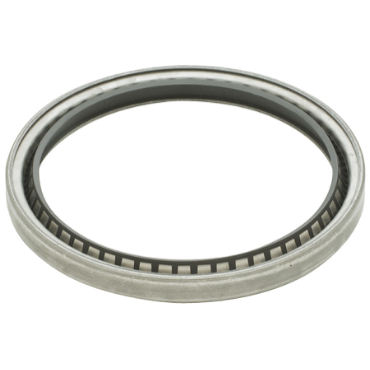

Garlock 21086-2837 Model 53 Single Lip Seal with Springs

Product Description

The Garlock Model 53 Single Lip Seal with MPN 21086-2837 is designed for effective sealing in various applications. This seal features a diameter of four and three-fourths inches for the shaft and five and three-fourths inches for the housing bore.

• Temperature range from -40 °F to 200 °F
• Pressure rating of seven psi
• Constructed with durable materials for long-lasting use

Product Highlights

This seal is a general-purpose solution for rotating applications such as gearboxes and pumps. Its internal lip design offers reliable performance in managing fluids and contaminants.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 100749105

Technical Specifications

• Shaft Diameter: 4.75 in
• Housing Bore Diameter: 5.75 in
• Width: 0.5 in
• Seal Design: Assembled Seal
• Material: Mill-Right N
• Spring Material: Stainless Steel
• Maximum Pressure: 7 psi
• Maximum Surface Speed: 3,000 ft/min
• Misalignment Tolerance: 0.015 in
• Case Construction: Heavy-Duty Carbon Steel
