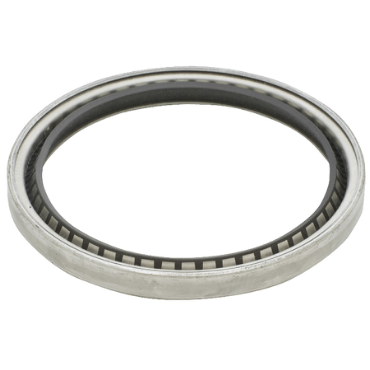

Garlock 21086-2753 Model 53 Single Lip Seal with Springs

Product Description

The Garlock Model 53 Single Lip Seal with Springs, MPN 21086-2753, is designed for robust sealing applications. This seal provides durability and reliability in various mechanical systems. It features a single lip with a finger spring that accommodates slight misalignment while ensuring a secure fit.

• For shafts with a diameter of four and one-half inches
• Designed for housing bore diameters of five and one-half inches
• Max surface speed of three thousand feet per minute

Product Highlights

This seal is ideal for general-purpose applications, capable of withstanding a temperature range from negative forty degrees Fahrenheit to two hundred degrees Fahrenheit.

Product Information

Standard Information

• Brand: Garlock
• Part Number: 100749098

Technical Specifications

• Construction: Model 53
• Misalignment & Runout: 0.015@1000, 0.010@2000, 0.005@3000
• Seal Design: Assembled Seal
• Temperature Range [Min]: -40 °F
• Housing Bore Diameter: 5 1/2 in
• Temperature Range [Max]: 200 °F
• Lip Style: Internal
• Cover/Compensation Ring/Plate Required: No
• Surface Speed [Max]: 3,000 ft/min
• Case Construction: Heavy-Duty Carbon Steel
• Pressure [Max]: 7 psi
• Inch/Metric: Inch
• Lip Type: Single Lip w/Finger Spring
• Lip Base Material: Nitrile
• Shaft Diameter: 4.5 in
• Lip Material: Mill-Right N
• Misalignment Tolerance: 0.015 in
• Spring Material: Stainless Steel
• Seal Application: General Purpose
• Weight: 0.459 LB
• EAN or UPC: 717744002565
