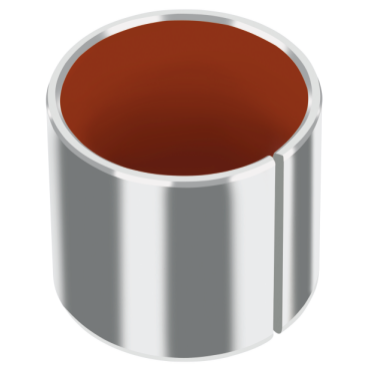

Garlock 04DP404 DP4® Bushing

Product Description

The Garlock 04DP404 is a DP4® bushing designed for various applications. This product features a lead-free design that complies with EVL and RoHS standards. It is suitable for linear, oscillating, and rotating movements, ensuring versatility in usage.

• Self-lubricating for efficient operation
• Suitable for both dry and lubricated applications
• Designed for a wide range of loads and speeds

Product Highlights

The DP4® bushings provide excellent wear resistance and low friction. They can operate effectively in high-pressure environments.

Product Information

Standard Information

• Brand: Garlock Bearings LLC
• Part Number: 101415838

Technical Specifications

• Inner Diameter: 1/4 in
• Outer Diameter: 0.3120 in
• Length: 1/4 in
• Material: PTFE Based Metal Polymer
• Bore Type: Round Bore
• Max. Static Pressure: 36,000 psi
• Max. Dynamic Pressure: 20,000 psi
• Temperature Range: -200 °F to 280 °F
