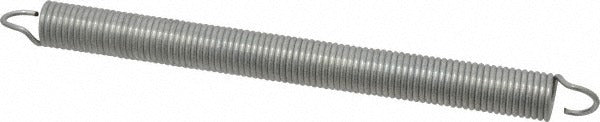

Gardner Spring V38C Extension Spring 26.38 Lb Max Load

Product Description

The GARDNER SPRING V38C is a galvanized steel extension spring designed for mechanical tensioning applications in industrial, commercial, and light residential settings. With an outside diameter of 0.64 inches and a wire diameter of 0.08 inches, this spring delivers a spring rate of 3.51 lb/in and a maximum work load of 26.38 pounds. The overall free length is 8 inches, with a maximum extended length of 12.5 inches, giving technicians a clear working range for load calculations. Initial tension is rated at 7.30 pounds. The zinc-plated galvanized finish provides corrosion resistance for both indoor and outdoor service environments. Each package contains 3 pieces.

The V38C suits mechanical assemblies that require controlled extension force across a moderate load range. Typical applications include HVAC equipment linkages, door and panel tension mechanisms, industrial machine components, and general-purpose tensioning hardware. This spring is appropriate wherever a compact, medium-duty extension spring is needed and where corrosion exposure is a factor. Installers in HVAC, mechanical, and industrial service trades select springs in this specification range for replacement and new-build work.

Key Features

• 3.51 lb/in spring rate for predictable, linear load response
• 26.38 lb maximum work load supports medium-duty tensioning requirements
• 12.5 inches maximum extended length provides adequate working travel
• Galvanized and zinc-plated finish for corrosion resistance in exposed environments
• 0.08 inch wire diameter and 0.64 inch OD in a compact 8 inch free length
• Sold in a package of 3 pieces, minimizing downtime on multi-spring assemblies

Compatibility

Designed as an OEM-style replacement or direct-fit extension spring for mechanical assemblies requiring a 0.64 inch OD, 8 inch free length, and 3.51 lb/in spring rate in steel construction.

Installation Notes

Extension springs should be installed by a qualified mechanic or technician familiar with spring-loaded assemblies. Always relieve all tension from the existing spring assembly before removal and use appropriate safety precautions, as springs store energy and can cause injury if released unexpectedly. Verify that the replacement spring matches the required OD, wire diameter, spring rate, and extended length for the specific application before installation. Do not exceed the rated maximum work load of 26.38 pounds.
