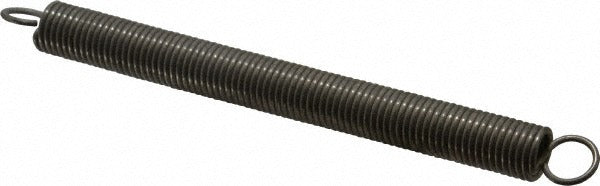

Gardner Spring V23C-SS Extension Spring 0.5in Od 16.7lb

Product Description

The GARDNER SPRING V23C-SS is a stainless steel extension spring engineered for light-duty to medium-duty mechanical applications requiring a reliable, corrosion-resistant tensile force element. With an outside diameter of 0.5 inches and a wire diameter of 0.0625 inches, this spring delivers a spring rate of 2.85 pounds per inch and a maximum work load of 16.7 pounds. The free length is 6 inches and the maximum extended length is 10.52 inches. Initial tension is rated at 3.3 pounds. It is suited for installation by maintenance technicians, mechanical assemblers, or trade professionals working on equipment that demands precise spring return force.

This extension spring is appropriate for residential and light commercial mechanical assemblies where corrosion resistance is a priority. Typical applications include HVAC damper linkages, control panel assemblies, door latch mechanisms, and general industrial equipment requiring repeatable extension force. The stainless steel construction with plain finish makes it well suited for humid or chemically active environments. Sold as a single piece, it is a direct drop-in component for assemblies specifying these dimensional and load parameters.

Key Features

• Stainless steel construction provides corrosion resistance in humid or harsh service environments
• Spring rate of 2.85 lb/in delivers consistent, predictable extension force
• Maximum work load of 16.7 pounds supports light-duty to medium-duty tensile applications
• Initial tension of 3.3 pounds keeps the spring closed under no-load conditions
• Free length of 6 inches with maximum extended length of 10.52 inches allows significant travel range
• Plain finish with no additional coating for compatibility with a wide range of assembly environments

Compatibility

Designed as a direct-replacement or new-installation extension spring for mechanical assemblies specifying a 0.5-inch outside diameter, 0.0625-inch wire diameter, and a 2.85 lb/in spring rate.

Installation Notes

Extension springs store energy under load and should be installed and removed with appropriate hand protection and eye protection to guard against accidental release. Verify that mounting hooks or anchor points can bear the maximum work load of 16.7 pounds before installation. De-energize or lock out any mechanical system before replacing a spring component per applicable OSHA lockout/tagout procedures. Do not stretch the spring beyond its rated maximum extended length of 10.52 inches, as permanent deformation or failure may result.
