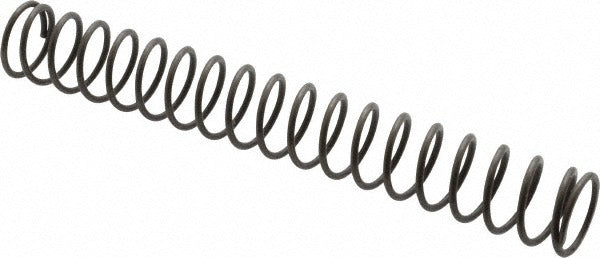

Gardner Spring MC084-0815-M Precision Compression Spring

Product Description

The GARDNER SPRING MC084-0815-M is a precision compression spring manufactured from stainless steel with a plain finish. It measures 0.433 inches in outside diameter and 3.209 inches in free length, with a solid height of 0.807 inches. The spring delivers a maximum work load of 27.36 pounds and a spring rate of 2.73 pounds per inch. Closed and ground ends provide stable seating and consistent load distribution under compression. This spring is suited for mechanical assemblies, industrial equipment, and trade applications where repeatable, controlled compression force is required. Licensed technicians and mechanical assemblers specify this part for precision-fit installations.

The MC084-0815-M is appropriate for use in light-to-moderate load mechanical applications across HVAC equipment, plumbing assemblies, electrical enclosures, and general industrial machinery. Its stainless steel construction supports use in environments where corrosion resistance is a factor, including wet, humid, or chemically exposed service conditions. Closed and ground end geometry makes it a reliable choice for applications requiring consistent perpendicularity and flat seating contact.

Key Features

• Stainless steel construction for corrosion resistance in demanding service environments
• Closed and ground ends for stable, flat seating and consistent perpendicularity
• 27.36 pound maximum work load with a 2.73 pound per inch spring rate
• 0.433 inch outside diameter and 3.209 inch free length for precise dimensional fit
• Solid height of 0.807 inches prevents coil bind under full compression
• Meets DIN 17223, DIN 17224, and DIN 2095 precision spring standards

Compatibility

Designed as an OEM-style precision compression spring replacement suitable for mechanical assemblies requiring a 0.433 inch outside diameter, closed and ground end compression spring with stainless steel construction.

Installation Notes

Installation of compression springs should be performed by a qualified mechanical technician familiar with spring-loaded assemblies. Ensure the mating bore or pocket dimensions are verified against the spring outside diameter before installation to prevent binding or misalignment. De-energize or relieve all system pressure before servicing any spring-loaded component. Do not compress the spring beyond its solid height during installation or testing.
