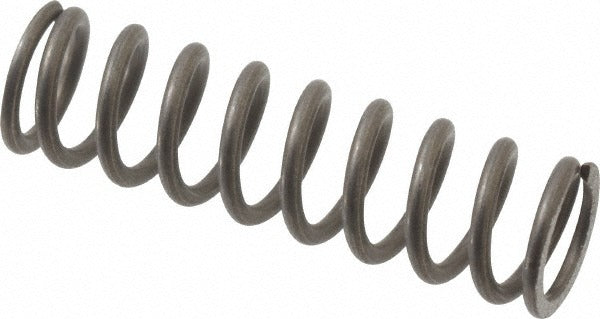

Gardner Spring MC061-0330-M Compression Spring 0.364in Od

Product Description

The GARDNER SPRING MC061-0330-M is a precision compression spring manufactured from stainless steel with a plain finish. It features an outside diameter of 0.364 inches, a free length of 1.299 inches, and a solid height of 0.517 inches. The spring delivers a maximum work load of 104.93 pounds and a spring rate of 29.02 pounds per inch, making it suitable for applications that demand consistent, repeatable force output. Closed and ground ends provide stable seating and accurate load distribution. This part is sold in packages of five and is intended for use by mechanical technicians, OEM assembly lines, and maintenance professionals working with precision mechanical assemblies.

This compression spring is appropriate for light-to-medium load applications in industrial, HVAC, plumbing, and general mechanical equipment. Closed and ground end construction supports use in guided spring seats where perpendicularity and solid height consistency are critical. Its stainless steel construction provides corrosion resistance in environments where moisture or mild chemical exposure is a factor. The compact form factor suits valves, actuators, latching mechanisms, and similar assemblies requiring controlled return force within a small footprint.

Key Features

• Outside diameter of 0.364 inches for use in standard spring guides and bores
• Maximum work load of 104.93 pounds with a spring rate of 29.02 pounds per inch
• Closed and ground ends for stable seating and accurate load transfer
• Stainless steel construction with plain finish for corrosion resistance
• Free length of 1.299 inches and solid height of 0.517 inches for compact fitment
• Manufactured to DIN 17223, DIN 17224, and DIN 2095 standards

Compatibility

Designed as an OEM-style precision compression spring suitable for valves, actuators, and mechanical assemblies requiring a 0.364-inch OD closed and ground compression spring with a 1.299-inch free length.

Installation Notes

Installation is typically performed by mechanical technicians or OEM assembly personnel. Always de-energize or depressurize the system before removing or installing compression springs. Confirm that the spring guide or bore diameter is compatible with the 0.364-inch OD before installation. Do not compress the spring beyond its solid height of 0.517 inches during assembly or testing.
