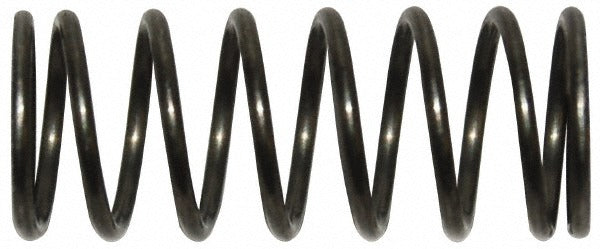

Gardner Spring MC050-0255-M Precision Compression Spring

Product Description

The GARDNER SPRING MC050-0255-M is a precision compression spring manufactured from stainless steel with a plain finish. It features a 0.273-inch outside diameter and a free length of 1.004 inches, with a solid height of 0.285 inches. The spring delivers a maximum work load of 12.45 pounds and a spring rate of 3.42 inch-pounds per inch. Closed ends provide stable seating and consistent load transfer. This spring is suited for mechanical assemblies, instrumentation, and light industrial applications where repeatable performance and corrosion resistance are required. Licensed technicians and mechanical assemblers are the typical installers.

This compression spring is used in precision mechanical systems where consistent force and compact sizing are essential. Its stainless steel construction makes it appropriate for environments exposed to moisture, mild chemicals, or temperature variation. Typical applications include valve assemblies, actuators, electronic enclosures, and fluid-handling components found in HVAC, plumbing, and industrial equipment. The closed end type allows for flat seating against mating surfaces without additional modification.

Key Features

• Stainless steel construction for corrosion resistance in demanding environments
• Closed end type for stable, flat seating against contact surfaces
• Maximum work load of 12.45 pounds for reliable force delivery
• Spring rate of 3.42 inch-pounds per inch for predictable deflection behavior
• Compact 0.273-inch OD and 1.004-inch free length for tight-clearance installations
• Compliant with DIN 17223, DIN 17224, and DIN 2095 standards

Compatibility

Designed as an OEM-style precision compression spring suitable for mechanical assemblies, instrumentation, and fluid-handling components requiring a 0.273-inch OD closed-end spring.

Installation Notes

Installation is typically performed by mechanical assemblers or licensed tradespeople during equipment service or new assembly work. Ensure the mating bore and spring pocket dimensions are compatible with the 0.273-inch OD and 0.285-inch solid height before installation. Relieve any system pressure and de-energize equipment before replacing or installing springs in pressurized or powered assemblies. Avoid over-compressing the spring beyond its solid height during service.
