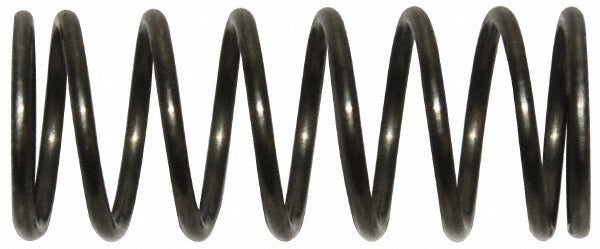

Gardner Spring MC050-0170-M Compression Spring 0.273in Od

Product Description

The GARDNER SPRING MC050-0170-M is a precision compression spring manufactured from stainless steel with a plain finish. It measures 0.273 inches in outside diameter and 0.669 inches in free length, with a solid height of 0.211 inches. The spring carries a maximum work load of 12.45 pounds and a spring rate of 4.96 inch-pounds per inch. Closed ends provide stable seating and consistent load transfer. This spring is suited for light-duty mechanical assemblies where tight tolerances and corrosion resistance are required. It meets DIN 17223, DIN 17224, and DIN 2095 standards, making it appropriate for applications with defined quality requirements.

This compression spring is used in a wide range of light mechanical, industrial, and instrumentation applications. Its small diameter and short free length make it well suited for compact assemblies such as valves, switches, fasteners, latches, and precision mechanical devices. The stainless steel construction provides resistance to corrosion and oxidation, making it a practical choice in environments where carbon steel would degrade. Technicians and assemblers working in HVAC, plumbing, electrical controls, and general industrial equipment commonly incorporate springs of this type during component service or new assembly builds.

Key Features

• Stainless steel construction for corrosion and oxidation resistance
• Closed end type for stable seating and repeatable load application
• Maximum work load of 12.45 pounds with a spring rate of 4.96 inch-pounds per inch
• Meets DIN 17223, DIN 17224, and DIN 2095 quality standards
• Plain finish silver color with tight dimensional tolerances across the production run
• UNSPSC Code 31161904 for streamlined procurement classification

Compatibility

Designed as a precision OEM-style compression spring for light mechanical assemblies requiring a 0.273-inch outside diameter and 0.669-inch free length with closed ends.

Installation Notes

Installation is typically performed by mechanical assemblers or service technicians during component replacement or new builds. De-energize and isolate any assembly before removing or installing springs to prevent unexpected release of stored mechanical energy. Use appropriate hand tools and eye protection when compressing or releasing the spring. Verify that the spring is fully seated against both mating surfaces before closing the assembly.
