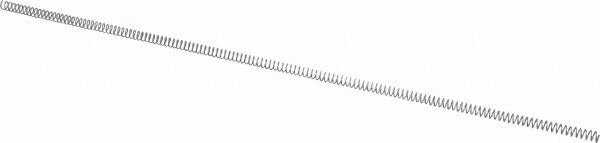

Gardner Spring M-8C23C Compression Spring 0.206in Od 12in

Product Description

The GARDNER SPRING M-8C23C is a cut-to-length compression spring designed for applications that require field-trimmed or custom-length spring solutions. With a 0.206-inch outside diameter and a 12-inch free length, this spring provides flexibility in length without sacrificing load performance. The spring rate is 0.85 pounds per inch, and wire diameter measures 0.0258 inches. Constructed from stainless steel with a galvanized finish, it is suited for use in light-duty mechanical assemblies across HVAC, plumbing, electrical, and general industrial environments. Licensed technicians and mechanical contractors typically source this spring for retrofit or custom installations where standard fixed-length springs do not fit the application.

The M-8C23C is intended for use in compression spring applications where the installer needs to cut the spring to a specific working length. This makes it practical for a wide range of mechanical systems, including valve assemblies, equipment latches, damper actuators, and control linkages commonly found in commercial and residential trade installations. The gray color and galvanized finish provide basic corrosion resistance for indoor and light-duty environments. Packages contain 3 springs per order, allowing for job-site flexibility or replacement inventory.

Key Features

• Cut-to-length design allows field trimming to exact working length required
• 0.206-inch outside diameter and 0.0258-inch wire diameter for light-duty compression loads
• Spring rate of 0.85 pounds per inch for consistent, predictable deflection
• Stainless steel construction with galvanized finish for durability and basic corrosion resistance
• 12-inch free length provides generous stock for multiple cut lengths from a single spring
• Sold in a package of 3 for job-site convenience

Compatibility

Designed as an OEM-style or aftermarket replacement compression spring for light-duty mechanical assemblies requiring a 0.206-inch outside diameter cut-to-length spring in HVAC, plumbing, and general industrial equipment.

Installation Notes

Installation is typically performed by licensed HVAC technicians, plumbers, or qualified mechanical contractors. Before replacing any spring in a pressurized or energized assembly, de-energize the system and relieve any stored mechanical or hydraulic pressure. Use appropriate cutting tools to trim the spring square to the required working length, as uneven cuts can affect load distribution and spring performance. Follow applicable equipment manufacturer guidelines and relevant mechanical codes when integrating this spring into a service assembly.
