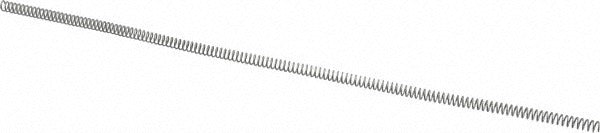

Gardner Spring M-8C22C Compression Spring 0.229in Od 12in

Product Description

The GARDNER SPRING M-8C22C is a cut-to-length compression spring designed for applications where a standard fixed-length spring does not meet dimensional requirements. Constructed from stainless steel with a galvanized finish, this spring measures 0.229 inches in outside diameter and ships at a 12-inch free length that can be cut to the required working length on the job. Wire diameter is 0.0286 inches, and the spring rate is 0.96 pounds per inch. It is suited for light-load mechanical assemblies in HVAC, plumbing, and general industrial equipment where corrosion resistance and consistent force characteristics are required.

This spring is used in residential and commercial mechanical systems that require a compact compression element. Typical applications include control linkages, valve assemblies, damper mechanisms, and other spring-loaded components where a custom working length is needed. The gray color and galvanized finish make it easy to identify and provide additional protection against moisture exposure in field conditions. Installation is performed by maintenance technicians and mechanical contractors who need to field-cut the spring to exact length using standard spring cutters or equivalent tooling.

Key Features

• Cut-to-length design allows field trimming to exact working length without special tooling beyond standard spring cutters
• 0.229-inch outside diameter fits compact spring pockets and low-clearance assemblies
• 0.96 pounds per inch spring rate provides predictable, consistent force across the working deflection range
• Stainless steel construction with galvanized finish for corrosion resistance in humid or wet environments
• 0.0286-inch wire diameter supports precise coil geometry and repeatable performance
• Gray finish allows quick visual identification during installation and service

Compatibility

Designed as a cut-to-length replacement or new-installation compression spring for light-load mechanical assemblies requiring a 0.229-inch outside diameter and a spring rate of approximately 0.96 pounds per inch.

Installation Notes

Cut-to-length springs should be trimmed using appropriate spring cutting tools to avoid distorting end coils, which can affect seating and load performance. De-energize or depressurize any system before removing or installing compression springs in valve or actuator assemblies. Verify the cut working length and installed load against the assembly specification before completing the installation. Wear appropriate eye protection when cutting springs, as cut ends can be sharp.
