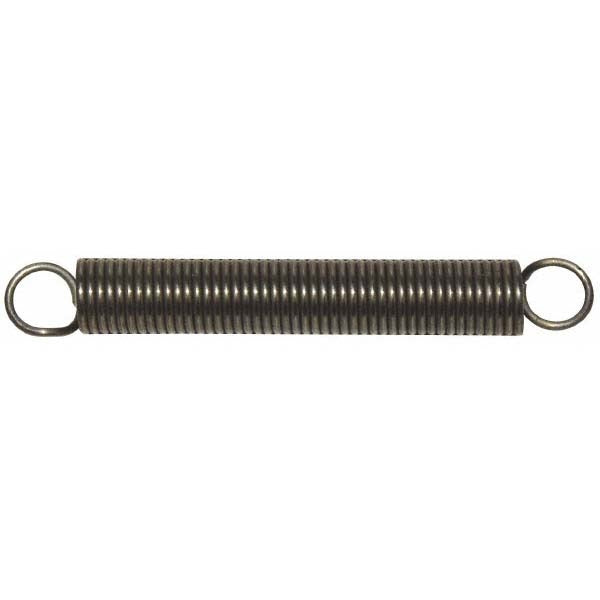

Gardner Spring GE0240-022-0620 Extension Spring

Product Description

The GARDNER SPRING GE0240-022-0620 is a small-diameter extension spring designed for light-duty tensioning and return-force applications across mechanical assemblies, HVAC equipment components, and general industrial or commercial hardware. With an outside diameter of 0.24 inches and a wire diameter of 0.022 inches, this spring delivers a spring rate of 4.3 lb/in with an initial tension of 0.19 lb. The overall length is 1.06 inches, which also serves as the maximum extended length. The plain finish indicates no additional coating, making it well suited for dry or low-corrosion environments. Supplied in a package of 3 pieces, this spring is appropriate for technicians who need on-hand replacements for precision assemblies.

This extension spring fits applications where compact, low-force tensioning is required. Common use cases include small actuator assemblies, damper linkages, control panel components, and similar mechanisms found in residential and light commercial HVAC equipment, electrical enclosures, and general mechanical devices. Its small wire diameter and outside diameter make it a fit for tight-clearance installations where larger springs cannot be accommodated. Trade professionals maintaining or rebuilding mechanical subassemblies will find the 3-piece package quantity useful for stocking spare hardware during service calls.

Key Features

• Outside diameter of 0.24 inches fits tight-clearance spring pockets and mounting slots
• 4.3 lb/in spring rate provides consistent, predictable return force for light-duty applications
• 0.022-inch wire diameter for low-profile, precision tensioning needs
• Initial tension of 0.19 lb ensures the spring remains closed under light preload conditions
• Plain finish suitable for dry, low-corrosion service environments
• Packaged in quantities of 3, supporting bench stock and field replacement needs

Compatibility

Designed as a standard replacement or stock extension spring for mechanical assemblies requiring a 0.24-inch outside diameter, 0.022-inch wire diameter, and a 1.06-inch overall length with a 4.3 lb/in spring rate.

Installation Notes

Extension springs store energy under tension and should be handled with appropriate eye protection during installation or removal. Verify that hook ends are fully seated in their anchor points before applying load. Technicians should confirm the spring rate and extended length match the original specification before installing in a load-bearing or safety-critical assembly. No special tools are typically required, but spring hooks should be inspected for deformation after removal of the old spring.
