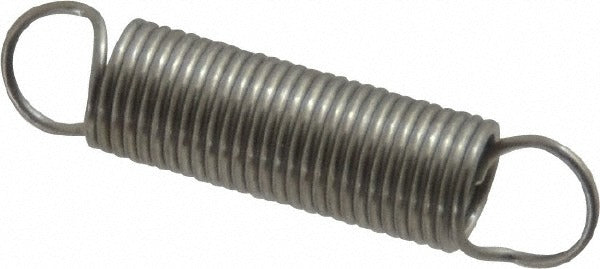

Gardner Spring GE0180-0180750S Extension Spring

Product Description

The GARDNER SPRING GE0180-0180750S is a small-body extension spring designed for light-duty mechanical and industrial applications. It measures 0.18 inches outside diameter with a wire diameter of 0.018 inches and a maximum extended length of 1.66 inches. The spring delivers a rated spring rate of 1.3035 pounds per inch and an initial tension of 0.1217 pounds, making it well-suited for applications requiring consistent, controlled return force. This package includes 3 pieces per unit. Maintenance technicians, equipment repair specialists, and trade professionals working on mechanical assemblies, control linkages, or small equipment components are the typical installers.

This extension spring fits light-load mechanical assemblies where a small-profile, precision spring is required. The inside hook length of 3/4 inch allows for standard hook or loop attachment points in compact assemblies. Typical install scenarios include control linkages, panel latches, small actuator returns, and similar applications in HVAC equipment, electrical enclosures, or general mechanical assemblies requiring a reliable tension element.

Key Features

• Outside diameter of 0.18 inches for compact, tight-space fitment
• Wire diameter of 0.018 inches for light-duty tension loads
• Spring rate of 1.3035 pounds per inch for consistent return force
• Initial tension of 0.1217 pounds for controlled preload
• Inside hook length of 3/4 inch for standard attachment compatibility
• Sold in a package quantity of 3 pieces

Compatibility

Designed as a direct-replacement extension spring for light-duty mechanical assemblies requiring a 0.18-inch OD, 0.018-inch wire diameter spring with a 1.66-inch maximum extended length.

Installation Notes

Installation should be performed by a qualified technician familiar with spring-loaded mechanical assemblies. De-energize or fully power down any associated equipment before removing or installing tension springs to prevent unexpected movement or injury. Use appropriate hand tools and eye protection when stretching or seating the spring hooks. Verify hook attachment points are secure and free of wear before reinstating the assembly to service.
