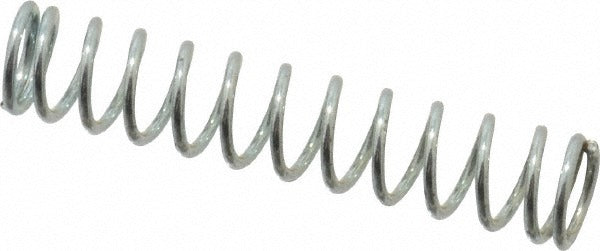

Gardner Spring C8C Utility Compression Spring 0.25in Od

Product Description

The GARDNER SPRING C8C is a utility compression spring designed for general-purpose mechanical applications requiring a compact, reliable return or load force. Measuring 0.25 inches in outside diameter and 1.25 inches in free length with a wire diameter of 0.0287 inches, this spring delivers a spring rate of 7.54 pounds per inch and a maximum work load of 6.46 pounds. Constructed from steel with a zinc finish, it is suited for light-duty assemblies in industrial, HVAC, plumbing, and equipment manufacturing environments. The closed end type provides stable seating on flat surfaces without additional hardware.

This compression spring is used in applications where a small-footprint, high-cycle return force is needed. Typical installations include valve assemblies, damper linkages, control mechanisms, and equipment housings across residential and light commercial systems. Its compact dimensions make it a practical selection for confined spring pockets and close-tolerance assemblies. Sold in packages of 12, it is suitable for technicians stocking spare hardware or completing multiple similar repairs in a single service call.

Key Features

• 0.25 inch outside diameter fits standard small-bore spring pockets
• 1.25 inch free length with a solid height of 0.394 inches for controlled deflection range
• 7.54 lb/in spring rate provides consistent, predictable load response
• Maximum work load of 6.46 pounds suitable for light mechanical assemblies
• Closed end type for stable, flat seating without additional hardware
• Zinc finish provides corrosion resistance in typical indoor service environments

Compatibility

Designed as a utility-type replacement compression spring for light mechanical assemblies requiring a 0.25 inch outside diameter and 1.25 inch free length with closed ends.

Installation Notes

Compression springs of this type are installed by mechanical technicians and field service professionals working on valve bodies, damper actuators, and equipment enclosures. Always de-energize and depressurize the system before removing or replacing spring components. Verify the spring pocket depth and seating diameter against the solid height and outside diameter to prevent binding or misalignment during reassembly. Eye protection is recommended when handling compressed spring assemblies.
