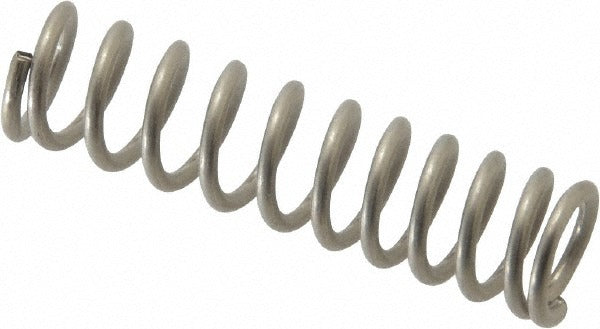

Gardner Spring C36C-SS Compression Spring Stainless Steel

Product Description

The GARDNER SPRING C36C-SS is a utility compression spring manufactured from stainless steel with a plain finish. It measures 0.375 inches in outside diameter and 1.5 inches in free length, with a wire diameter of 0.0476 inches. The spring delivers a maximum work load of 11.79 pounds and a spring rate of 17.67 pounds per inch. Its closed end type provides stable seating against mating surfaces. Designed for general-purpose compression applications, this spring suits mechanical assemblies where corrosion resistance and consistent force characteristics are required. It is a standard catalog item used by maintenance technicians, assemblers, and trade professionals across a range of industries.

This utility compression spring is appropriate for residential and light commercial mechanical applications where a compact, corrosion-resistant compression element is needed. The stainless steel construction makes it suitable for environments subject to moisture, mild chemicals, or temperature variation. Typical installations include valve assemblies, equipment latches, flow control components, and general mechanical linkages. The 0.375 inch OD fits standard spring pockets and housings sized for 3/8 inch nominal outside diameter springs.

Key Features

• Stainless steel construction provides corrosion resistance in wet or chemically exposed environments
• Closed end type ensures stable, flat seating against hardware surfaces
• 0.375 inch outside diameter fits standard 3/8 inch spring pockets
• Spring rate of 17.67 pounds per inch delivers predictable, linear force response
• Maximum work load of 11.79 pounds suits light-duty to medium-duty compression applications
• Solid height of 0.584 inches limits coil bind under full compression

Compatibility

Designed as an OEM-style utility compression spring for general mechanical assemblies requiring a 0.375 inch outside diameter closed-end spring in stainless steel.

Installation Notes

Installation is performed by maintenance technicians or mechanical assemblers using standard hand tools. Ensure the spring pocket or housing bore is clean and free of debris before seating the spring. Confirm alignment of the closed ends against mating seats to prevent lateral deflection under load. Do not compress the spring beyond its solid height of 0.584 inches during assembly or operation.
