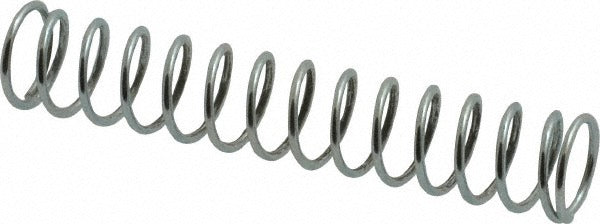

Gardner Spring C17C Utility Compression Spring 0.313in Od

Product Description

The GARDNER SPRING C17C is a utility compression spring designed for general mechanical and industrial applications. It features a 0.313 inch outside diameter and a free length of 1.75 inches, with a wire diameter of 0.0287 inches. The spring delivers a rate of 3.17 pounds per inch and supports a maximum working load of 4.16 pounds. Constructed from steel with a zinc plated finish, it resists corrosion in light-duty environments. Closed ends provide stable seating on flat surfaces without additional hardware. This spring suits applications across maintenance, equipment assembly, and component repair where a compact, light-load compression element is required.

The C17C fits a wide range of utility applications in industrial, commercial, and light mechanical settings. Its compact geometry makes it suitable for use in valves, latches, hinges, jigs, fixtures, and general-purpose assemblies. Technicians and maintenance professionals working with machinery, HVAC equipment, plumbing components, or electrical enclosures commonly use springs in this size class as replacements or for new assembly work.

Key Features

• 0.313 inch outside diameter for compact fitment in tight assemblies
• 1.75 inch free length with a solid height of 0.437 inches
• 3.17 lb/in spring rate for consistent, predictable load response
• 4.16 pound maximum working load capacity
• Closed end type for stable, flat-surface seating
• Steel construction with zinc plated finish for light corrosion resistance

Compatibility

Designed as a utility compression spring for general mechanical and industrial applications requiring a 0.313 inch OD and 1.75 inch free length in the light-load range.

Installation Notes

Installation is typically performed by maintenance technicians or mechanical assemblers. Before replacing or installing a compression spring in any pressurized or powered system, de-energize the equipment and relieve all pressure. Confirm the spring fits the bore or post diameter of the application and seats flush on both closed ends. Do not compress the spring beyond its solid height during service.
