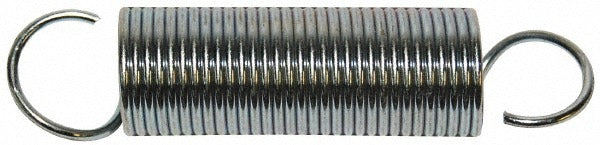

Gardner Spring 37009G Extension Spring 0.6 Lb 3/32 in Od

Product Description

The GARDNER SPRING 37009G is a small-profile zinc-plated extension spring designed for light-duty tensioning applications across a range of mechanical assemblies. With an outside diameter of 0.094 inches, a free length of 0.375 inches, and a maximum extended length of 0.83 inches, this spring operates in tight spaces where compact geometry is critical. The spring rate is 1.2 pounds per inch, and the maximum work load is 0.6 pounds, making it suited for low-force return and tension functions. Wire diameter is 0.01 inches. Sold in packages of 6, this part is appropriate for technicians and assemblers working on HVAC, appliance, or general mechanical systems requiring small extension springs.

This spring fits applications where a short, fine-wire extension spring is needed to maintain tension or provide return force on lightweight linkages, levers, or panels. Typical install scenarios include control components, access panels, damper linkages, and small mechanical assemblies in residential and light commercial equipment. The zinc-plated finish provides basic corrosion resistance for indoor service environments.

Key Features

• Outside diameter of 0.094 inches fits tight clearance applications
• Spring rate of 1.2 pounds per inch for predictable, consistent tension
• Maximum extended length of 0.83 inches with a free length of 0.375 inches
• Maximum work load rated at 0.6 pounds
• Zinc-plated finish for basic corrosion resistance in indoor environments
• Sold in packages of 6 for service stock and replacement inventory

Compatibility

Designed as an OEM-style replacement extension spring for light-duty mechanical assemblies requiring a 3/32 inch OD, 0.01 inch wire diameter, fine-coil tension spring.

Installation Notes

Installation of small extension springs should be performed by a qualified technician familiar with the host assembly. Power down or de-energize any equipment before servicing components. Use appropriate hand tools and eye protection when stretching or seating extension springs, as released tension can cause injury. Follow the equipment manufacturer's service documentation for proper hook orientation and attachment points.
