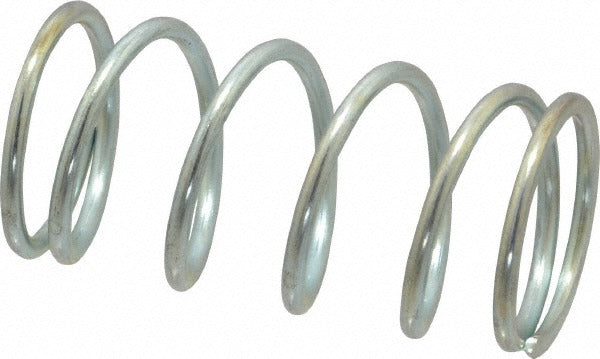

Gardner Spring 36611G Precision Compression Spring

Product Description

The GARDNER SPRING 36611G is a precision compression spring manufactured from music wire with a plain silver finish. It features a 0.97-inch outside diameter, a 2-inch free length, and a 0.085-inch wire diameter. The spring delivers a rated spring rate of 26.05 pounds per inch and handles a maximum work load of 38 pounds. Closed and ground ends provide stable seating and consistent performance under repeated cycling. This part is installed by mechanical technicians, industrial maintenance professionals, and HVAC or plumbing service personnel who require reliable elastic return force in assemblies requiring tight dimensional tolerances.

This compression spring is suited for use in light-to-medium-duty mechanical assemblies across residential, commercial, and industrial applications. Typical install scenarios include valve mechanisms, actuator assemblies, pump components, and other systems where controlled compression and consistent spring rate are critical. The 1-inch hole diameter fitment and 0.539-inch solid height make it compatible with standard bore hardware found across a wide range of trade equipment platforms.

Key Features

• Precision compression spring with closed and ground ends for stable, flat seating
• 0.97-inch outside diameter with 1-inch recommended hole diameter for proper bore fitment
• 26.05 lb/in spring rate for predictable, consistent deflection performance
• 38-pound maximum work load capacity
• Music wire construction meets AISI 302, ASTM A228, and ASTM A313 standards
• 0.539-inch solid height and 2-inch free length for compact installation in tight assemblies

Compatibility

Designed as an OEM-style precision compression spring for mechanical assemblies requiring a 0.97-inch outside diameter, 2-inch free length, and closed and ground end configuration across HVAC, plumbing, and industrial equipment applications.

Installation Notes

Installation should be performed by a qualified technician familiar with spring-loaded mechanical assemblies. Always de-energize or depressurize the system before removing or installing compression springs to prevent unexpected release of stored energy. Verify bore clearance against the 1-inch recommended hole diameter before installation. Do not compress the spring beyond its solid height of 0.539 inches during assembly.
