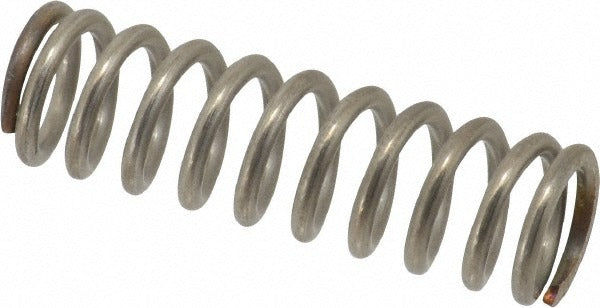

Gardner Spring 36539GS Precision Compression Spring

Product Description

The GARDNER SPRING 36539GS is a precision compression spring manufactured from stainless steel and intended for use in mechanical assemblies that require consistent, repeatable force over a defined travel range. It features a 0.6-inch outside diameter, a 2-inch free length, and a 0.085-inch wire diameter. The spring rate is 54.21 pounds per inch, and the maximum working load is 63 pounds. Closed and ground ends provide stable, flat seating on mating surfaces. This spring is suited for HVAC, plumbing, pool, and general industrial equipment assemblies where corrosion resistance and precision force characteristics are required.

This compression spring is applicable in residential and commercial mechanical systems where a compact, corrosion-resistant spring is needed to maintain pressure, return a component to its resting position, or provide consistent load against a valve, actuator, or sliding assembly. The plain finish and silver color are consistent with standard stainless steel hardware. The 0.625-inch hole diameter rating indicates the maximum shaft or bore size this spring is designed to seat within.

Key Features

• Closed and ground ends for flat, stable seating on mounting surfaces
• Stainless steel construction resists corrosion in wet or chemically active environments
• Spring rate of 54.21 pounds per inch for predictable, linear force output
• Maximum working load of 63 pounds with 0.98-inch solid height
• Meets AISI 302, ASTM A228, and ASTM A313 material standards
• Compact 0.6-inch OD fits standard spring pockets and valve assemblies

Compatibility

Designed as a precision-grade replacement or service compression spring for mechanical assemblies requiring a 0.6-inch OD, 2-inch free length stainless steel spring with closed and ground ends.

Installation Notes

Compression springs of this type are installed by qualified technicians during assembly, repair, or replacement of valve, actuator, or mechanical return mechanisms. De-energize or depressurize the system before disassembling any spring-loaded component. Confirm the solid height of 0.98 inches does not exceed the available compressed travel in the assembly. Handle stainless steel springs with care to avoid kinking or overstressing beyond the maximum working load.
