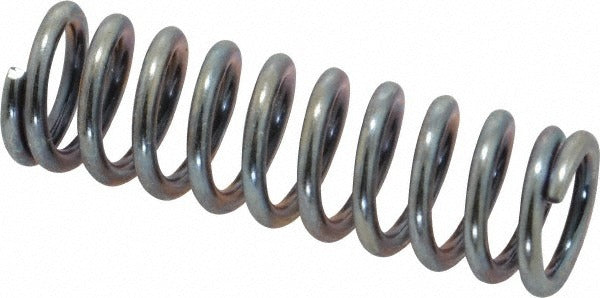

Gardner Spring 36539G Precision Compression Spring

Product Description

The GARDNER SPRING 36539G is a precision compression spring manufactured from music wire to AISI 302, ASTM A228, and ASTM A313 standards. It features a 0.6 inch outside diameter, a 2 inch free length, and a 0.085 inch wire diameter. The spring delivers a rate of 62.34 pounds per inch and supports a maximum work load of 63 pounds. Closed and ground ends provide stable, flat seating under load. This type of spring is used across mechanical assemblies, industrial equipment, and fluid-control components where consistent force and precise deflection characteristics are required. Installation is performed by mechanical technicians and maintenance professionals.

The 36539G fits applications requiring a compact, medium-duty compression spring with a 5/8 inch hole diameter clearance. Its music wire construction and plain silver finish make it suitable for general-purpose mechanical environments. The 0.98 inch solid height leaves adequate working travel within the 2 inch free length. This spring is sold in packages of five units, making it practical for service stock and low-volume assembly runs.

Key Features

• Closed and ground ends for flat, stable load bearing
• 62.34 pounds per inch spring rate for predictable deflection
• 63 pound maximum work load capacity
• Music wire construction meeting AISI 302, ASTM A228, and ASTM A313 standards
• 0.98 inch solid height provides usable working travel within 2 inch free length
• Plain silver finish suitable for general mechanical applications

Compatibility

Designed as a precision OEM-style compression spring for mechanical assemblies requiring a 0.6 inch outside diameter and 2 inch free length with closed and ground ends.

Installation Notes

Install and removal of compression springs should be performed with appropriate hand tools; exercise caution when compressing the spring to avoid unexpected release. Verify the mating bore or rod diameter against the 0.6 inch outside diameter and 5/8 inch hole diameter before installation. Inspect seating surfaces for flatness to ensure uniform load distribution across the closed ground ends.
