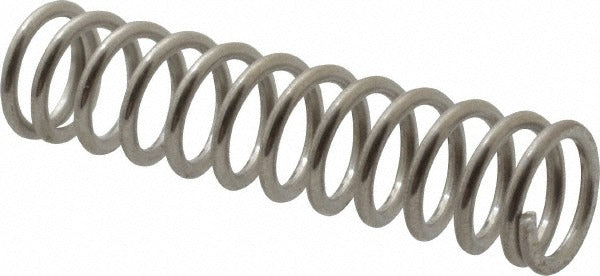

Gardner Spring 36380GS Compression Spring 0.3in Od Ss

Product Description

The GARDNER SPRING 36380GS is a precision compression spring manufactured from stainless steel to deliver consistent, repeatable force in demanding mechanical and industrial applications. It features a 0.3000-inch outside diameter and a 1.25-inch free length, with a wire diameter of 0.0382 inches. The spring rate is 13.91 pounds per inch, and the maximum working load is 12.0 pounds. Closed and ground ends provide stable seating and uniform load transfer. Technicians and assemblers working in HVAC, plumbing, valve, or general mechanical assemblies rely on this spring type for precise load control in tight tolerances.

This compression spring is suited for applications requiring a compact, corrosion-resistant spring element in residential and light commercial equipment. Typical installations include valve assemblies, pressure regulators, control mechanisms, and mechanical sub-assemblies where a stable spring rate and reliable max load capacity are critical. The plain finish and silver color make it easy to identify and inspect during assembly or maintenance operations. It is sold in packages of 5 units with a minimum order quantity of 1.

Key Features

• Precision compression type with closed and ground ends for consistent seating and load distribution
• 0.3000-inch outside diameter and 0.0382-inch wire diameter for precise fitment in tight housings
• 13.91 pounds per inch spring rate with a 12.0-pound maximum working load
• Stainless steel construction with plain finish for corrosion resistance in wet or chemically exposed environments
• Solid height of 0.4950 inches and hole diameter of 0.3130 inches for defined travel and mandrel compatibility
• Meets AISI 302, ASTM A228, and ASTM A313 material standards

Compatibility

Designed as a precision OEM-style compression spring for use in mechanical assemblies requiring a 0.3000-inch outside diameter, 1.25-inch free length, and closed and ground end configuration in stainless steel.

Installation Notes

Install by qualified mechanical assemblers or technicians familiar with spring-loaded component assemblies. Confirm the mating bore diameter accommodates the 0.3130-inch hole diameter spec and that the rod or mandrel is sized within the spring inside diameter before installation. De-energize or depressurize any system before removing or replacing spring components. Do not compress the spring beyond its solid height of 0.4950 inches during installation or operation.
